Photovoltaic PV distribution board, two Saltek surge arresters, Doktorvolt solar distribution board
Durable photovoltaic distribution board made of high-quality materials. Equipped with two Saltek surge arresters and a transparent door.
Versatility in a compact distribution board

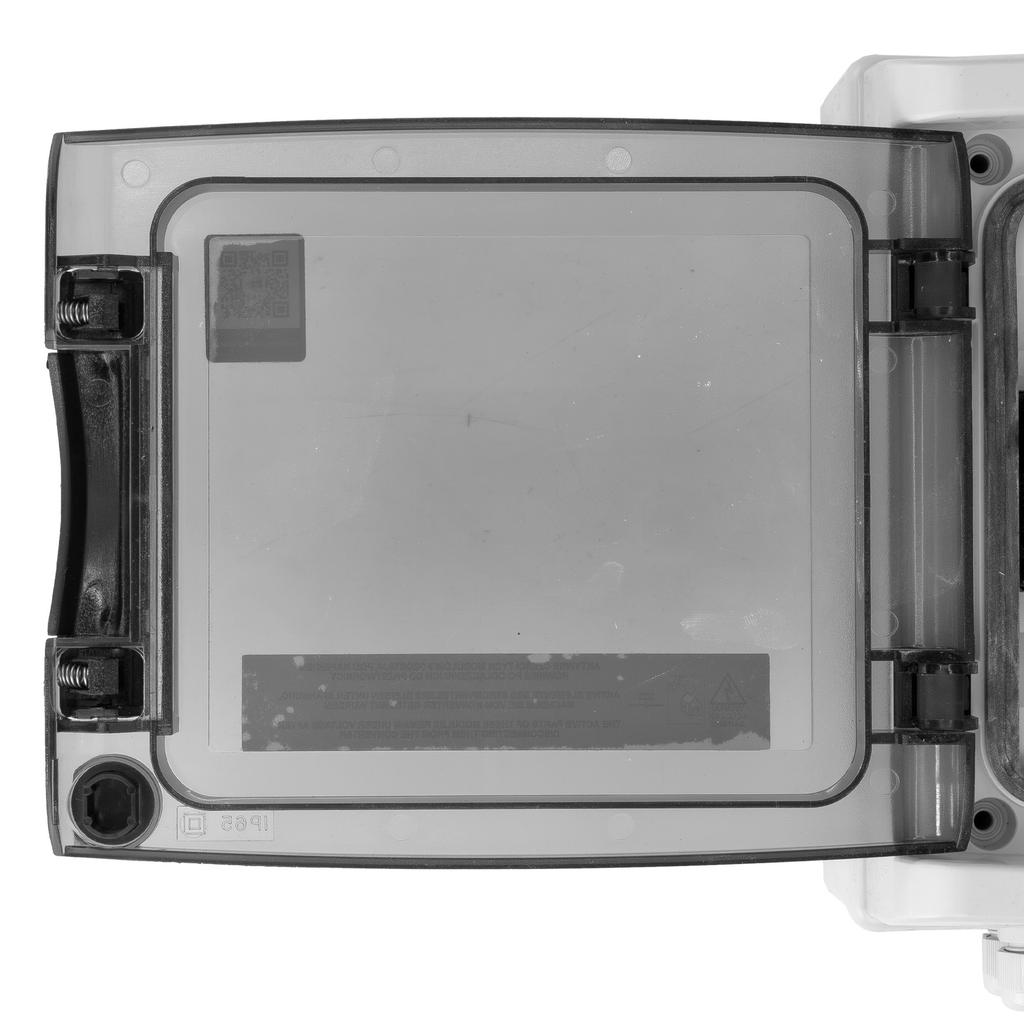

Compact photovoltaic distribution board 215x210x100 mm made of high-quality technopolymer. Equipped with transparent door for easy assessment of the device's operating status.
Comfort of use combined with quality of workmanship
The switchboard is equipped with the SLP-PV1000 V/Y varistor surge arrester from the renowned manufacturer Saltek. Designed for mounting on a DIN rail, it effectively protects PV systems without LPS or with maintained spark gap distance.
An additional advantage is visual damage indication, plug-in modules and locking possibility.
Sockets and Electrical Data
2x DC 3P T2 PV VDE
Number of PV circuits (STRING): 2
Maximum operating voltage +/PE, −/PE UCPV: 1020V DC
Total discharge current (8/20 µs) ITotal: 40 kA
Rated discharge current (8/20 µs) In: 15 kA
Maximum discharge current (8/20 µs) Imax: 40 kA
Voltage protection level between poles +/− Up: 4.0 kV
Voltage protection level +/PE, −/PE Up: 4.0 kV
Housing and Technical Data
Halogen-free material (HALOGEN-FREE): Yes
Cross-section of rigid conductors (min–max): 1.0 – 35 mm²
Cross-section of stranded conductors (min–max): 1.0 – 25 mm²
Wiring and Standards
Certificate = quality guarantee:
DOKTORVOLT brand products are routinely tested to ensure the highest quality products. After passing the tests, each product receives an individual certificate confirming the quality control carried out.
The company uses a certified TÜV SÜD system in the production process, which guarantees high quality.
IP Protection Rating = Greater Safety:
IP Protection Rating is an international standard that determines the degree to which an item is resistant to potential risk factors. It consists of two digits that inform us about the product's dust and water resistance.
Determining the IP rating allows you to consciously use the product in safe conditions. The protection ratingIP44 tells us that the device:
- is protected against penetration of objects larger than 1 mm
- is protected against water splashing from various directions
The Doktorvolt® company was founded in 2013. The dynamically developing company has conquered the Polish and foreign markets. The company's headquarters is located in Malichów in the Opole Voivodeship, where a modern production hall and warehouse are located.
The company specializes in the production of construction switchboards, distinguished by their quality and reliability. Each switchboard is constructed of high-quality components. The products meet the safety standards and norms applicable in the European Union.
Model: DV-6425-FOT
EAN: 5905191016425
Product serial number: FOT
Manufacturer: DOKTORVOLT
Surge protection: T2
Type of protective element: Varistor (MOV) in "Y" configuration
Rated short circuit current ISCPV: 10 kA DC
Response time ta: 25 ns
Type of construction: Surface-mounted

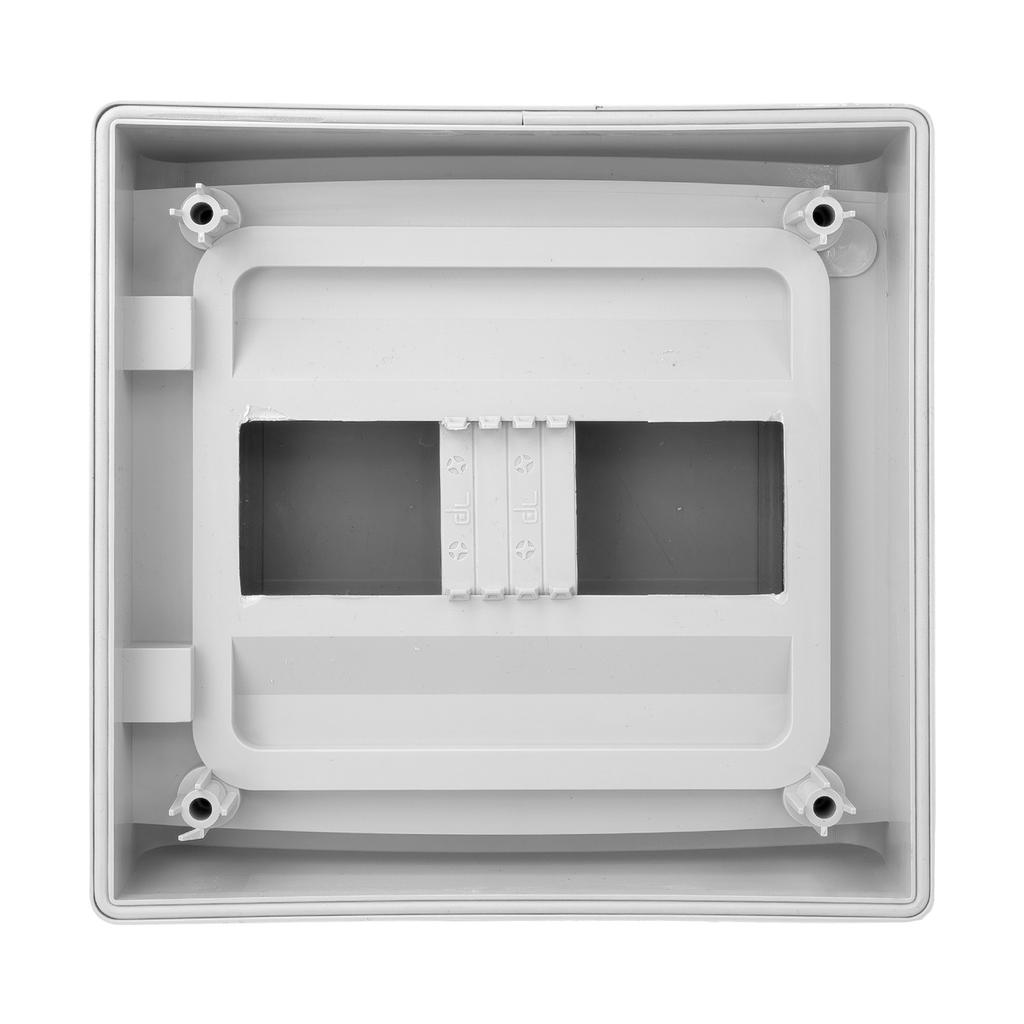

Housing dimensions: 215 x 210 x 100 mm
Housing material: Technopolymer
UV resistance: Yes
Resistance Mechanical: IK08 Housing color: Gray RAL 7035 Number of modules: 8 Housing protection class: IP65 Complete switchboard protection class: IP65 Installation temperature: -25 +60 °C
Protection class: II
Rated insulation voltage UI: 1000V
Fault signal: Red indicator field
Gland: 8x PG7, 1x PG11
Mounting pins with screw: 4x
Branch terminal: 1 x HLAK 25-1/2/25 M2 GN PE
Power cables: None
Neutral conductors: None
Protective conductors: 16mm2 yellow-green
