Feature:
1. Durable Materials: Made of premium plastic and aluminum materials, this 26KG digital servo is durable, stable in performance and long in service life. Special for robots use.

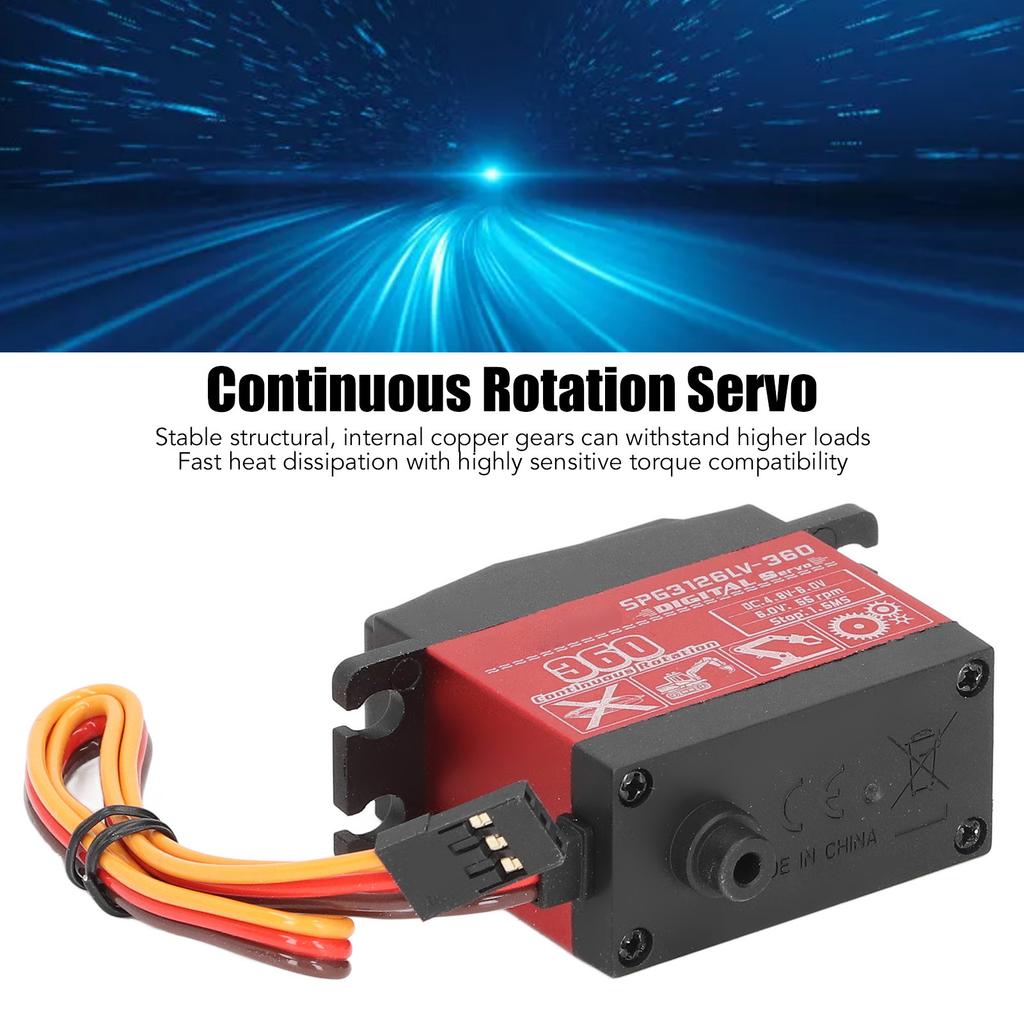

2. Higher Load Bearing Capacity: The internal copper gear of the digital servo can withstand higher loads to ensure the normal operation of the steering gear.
3. High Torque Compatibility: The digital dual axis servo has stable structural, fast heat dissipation, high torque compatibility and high sensitivity.

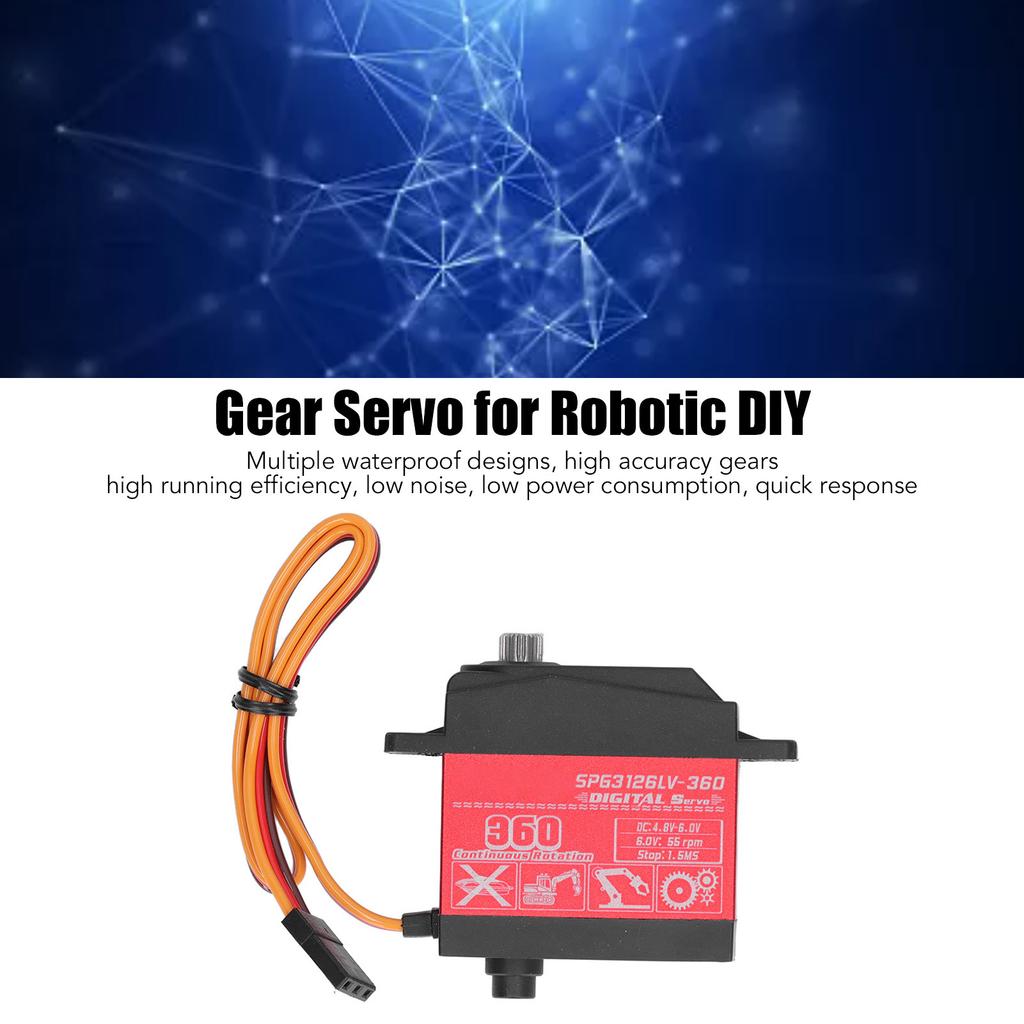

4. Good Performance: Multiple waterproof designs, high accuracy gears, high running efficiency, low noise, low power consumption, quick response, easy installation and disassembly.
5. Portable: The compact and lightweight design makes this servo very easy to carry. Different servo arms are included to suit your needs and for your convenience.
Specification:

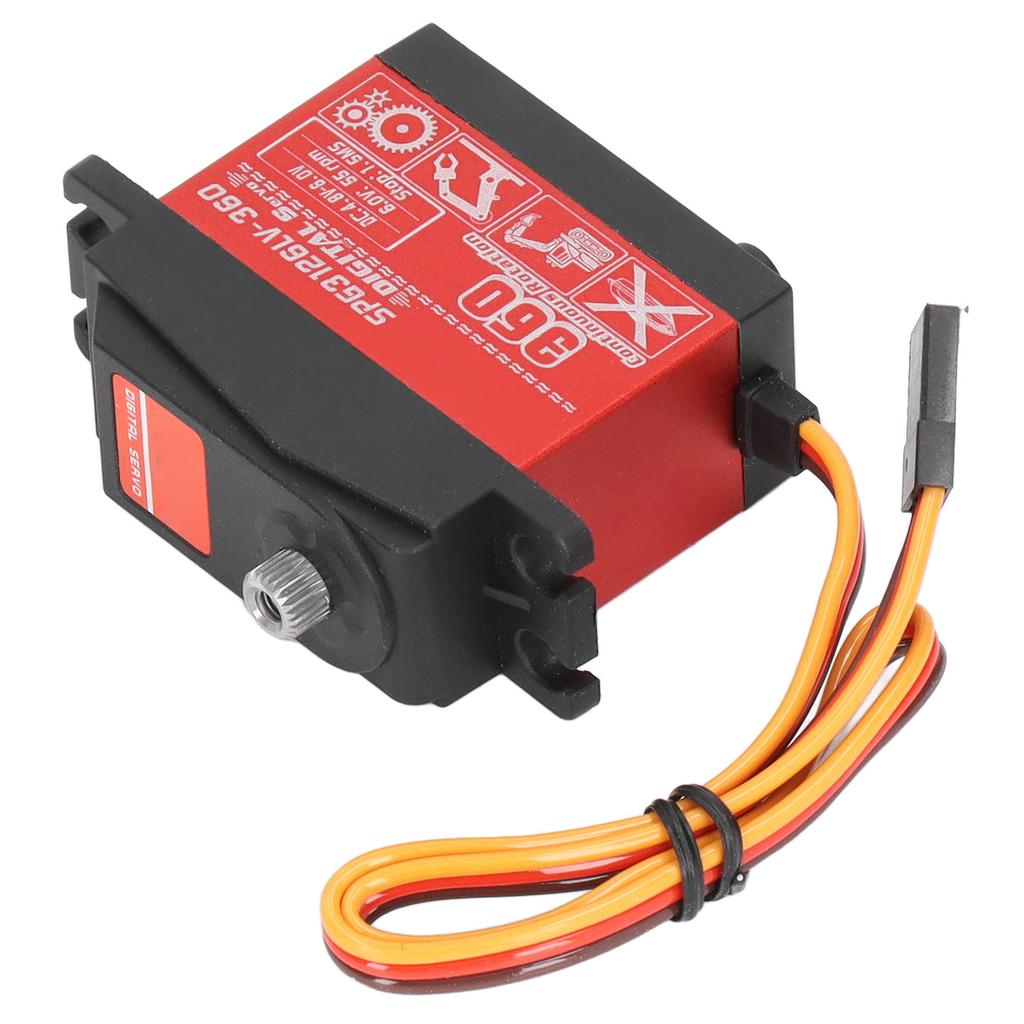

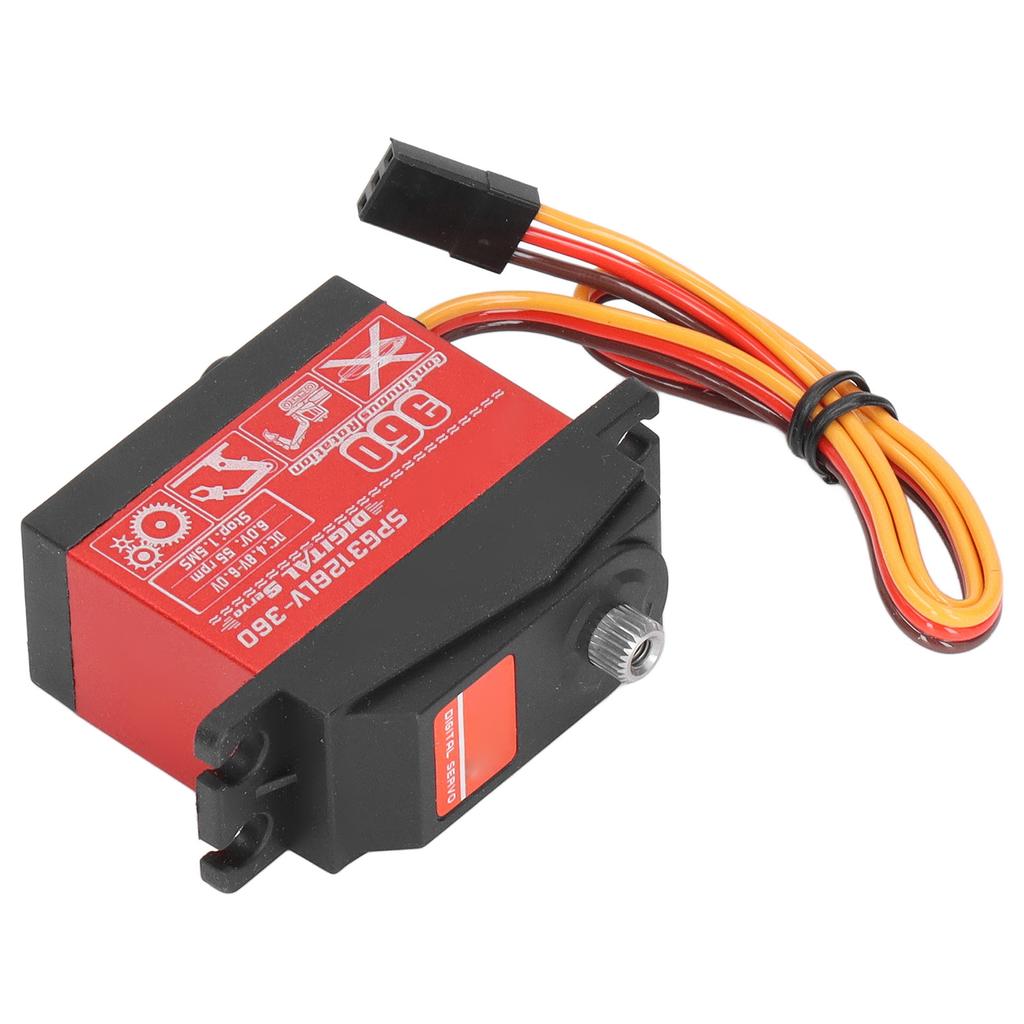

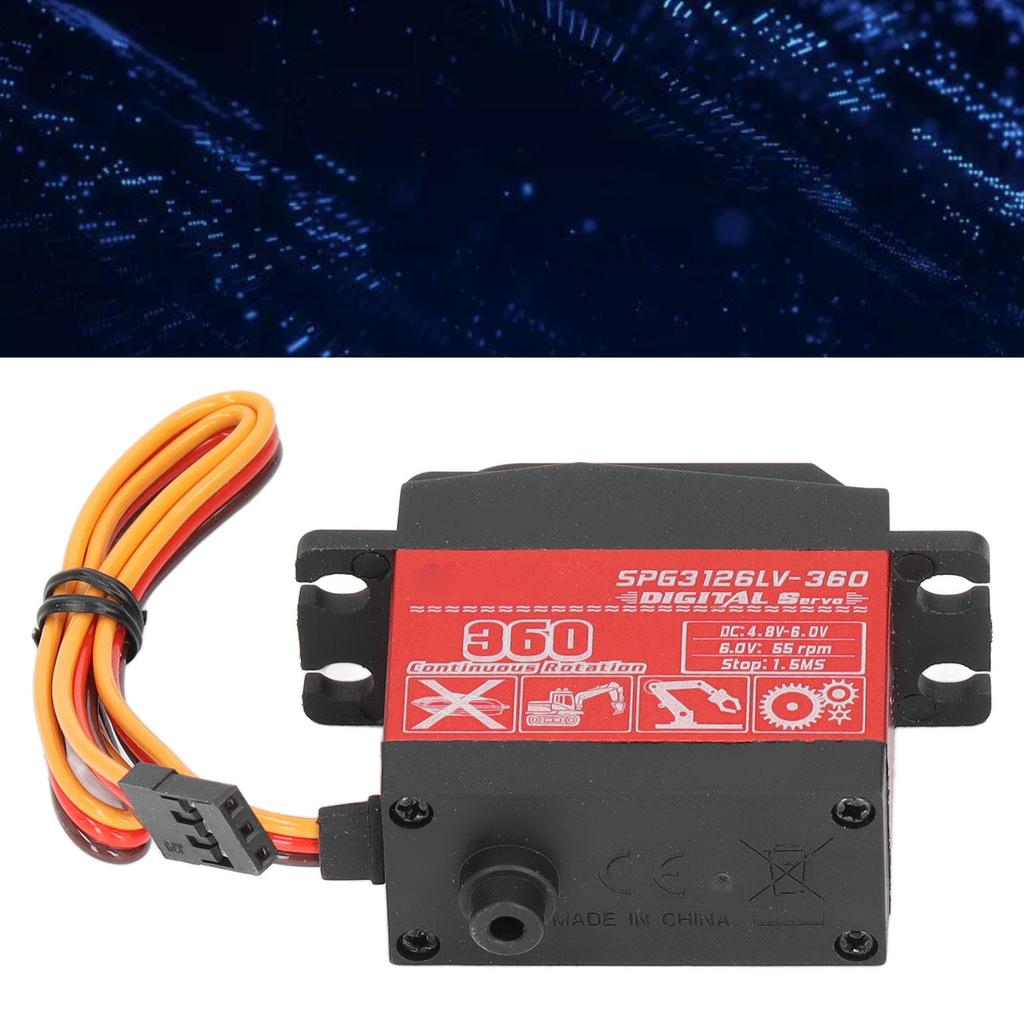

Item Type: 26KG Digital Servo
Gross Weight: 72g / 2.5oz
Model: SPG3126LV 360
Material: Plastic, aluminum
Color: Black red
Voltage Range: 4.8V-6V
Frequency: 330hz
Dead Time: 4μs
Neutral Position: 1500μs/50hz
Motor: Core motor
500-2500μs: 360 continuous rotations
Working Speed (4.8V): 44rpm
Working Speed (6.0V): 55rpm
Product Size: 40.5x20x40.5mm / 1.6x0.8x1.6in
Bearing: 2BB
Product Line Length: JR 260mm (including plug)
Application: Special for robots
How to Use:
1. Install the steering gear to the steering gear seat first, without installing the steering gear arm or steering gear protection. Just fix the servos. Then connect the servo to the receiver, which is generally divided into three lines of CH1 or ST socket. Bottom line, VCC, Signal PWM.2. After the servo is fixed, turn on the remote control, turn on the ESC after setting, and then the servo will stop at a fixed position.3. Without turning off the remote control and the steering gear, install the steering gear protection or the steering gear arm to the output gear of the steering gear.
Package List:
1 x 26KG Servo
2 x Servo Arm
2 x Screws
Note:
1. Due to manual measurement, please allow 1‑3mm error, thank you!
2. Due to the difference between different monitors, the picture may not reflect the actual color of the object.
