Feature:
*Made of material, and practical to use

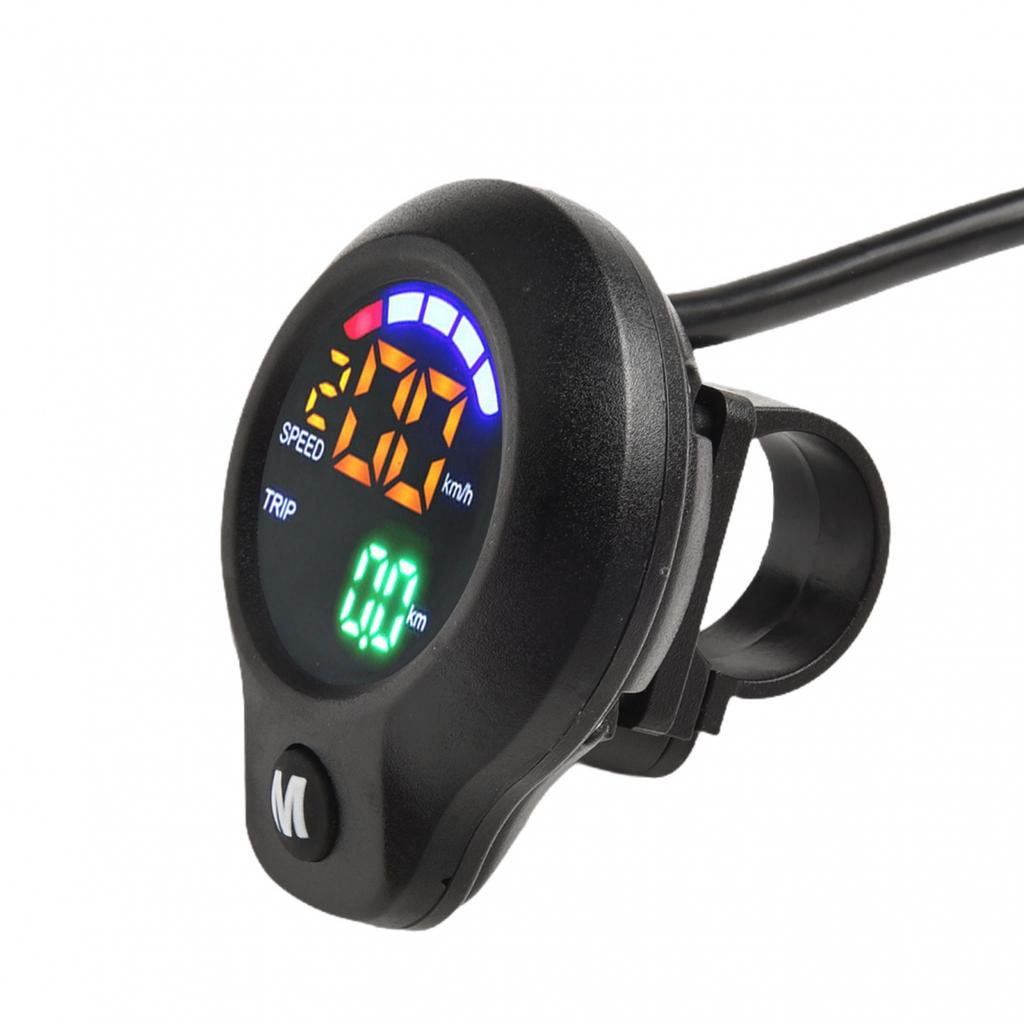

*New round color screen electric, digital lcd handle
*Function display: / level, voltage, ， Hall measurement Phase line measurement display Mileage
*LCD instrument display: - range power - voltage
*Voltage and mileage are in the same display position. Press the M key to switch the display content of mileage and voltage
*22mm installation diameter
*Mileage display The longer the riding distance, the larger the displayed kilometer value
*good compatibility for scooter ,balanced ，ebike ,electric bike
*easy to use and install,Good compatibility
Specification:
*Material: abs
*Color: Black (As Pictures Show)
*product name：ebike throttle
*size : approx 16x10x5Cm

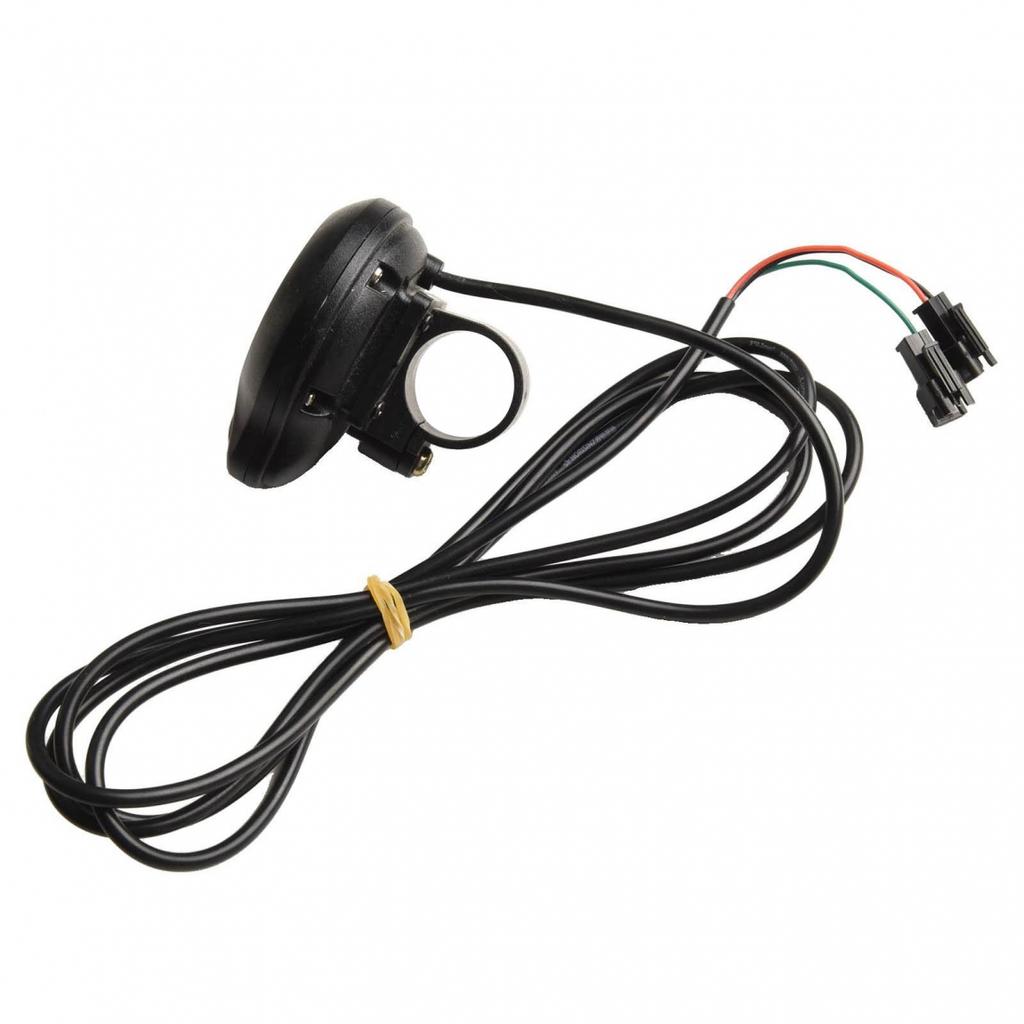

*3pin ：
Red power supply positive line
Black power supply negative line
Green line measurement line (connected to the motor Hall line)

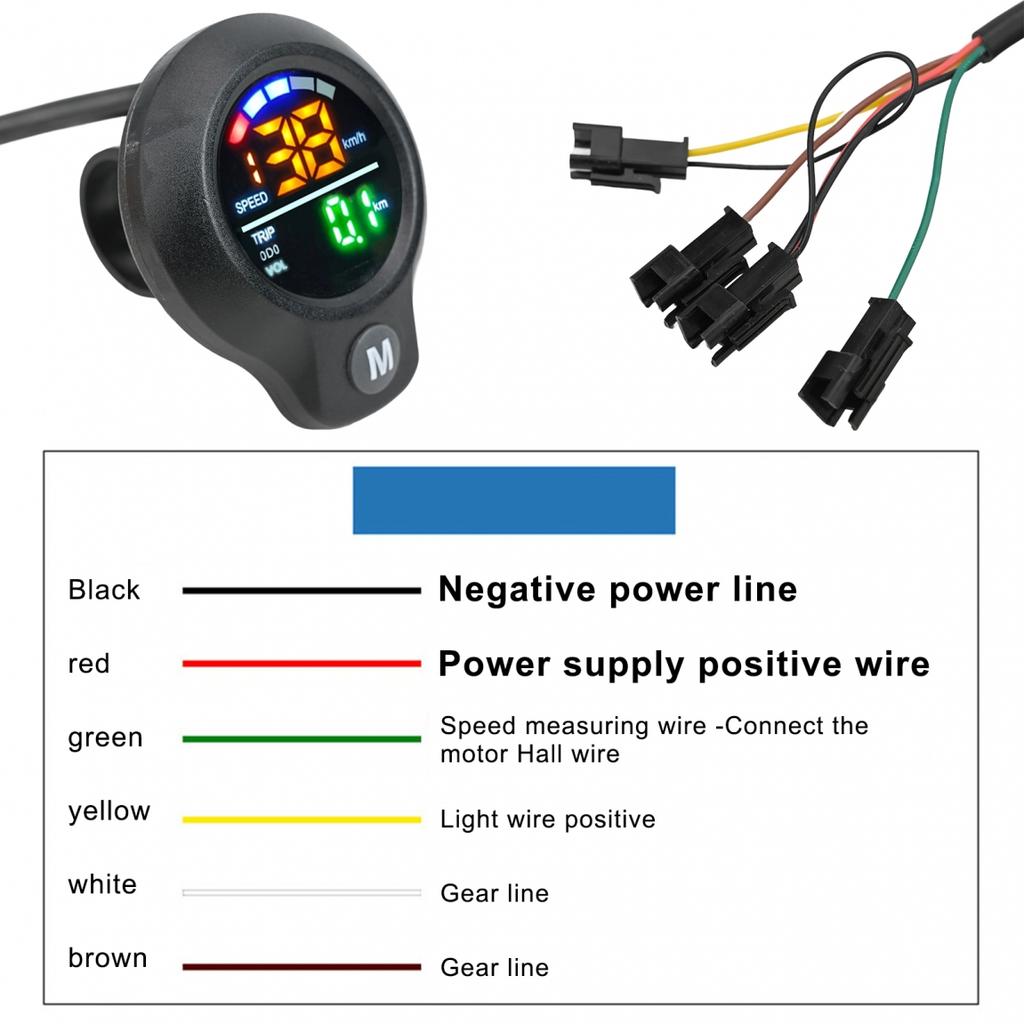

6pin ：
6-wire circular panel instrument circuit details
Red power positive line
Black power negative line
Green line measurement line (connected to the Hall line of the motor)
Yellow line Light linePositive
White line gear line
Brown line gear line
4PIn :
4-wire circular panel instrument circuit details
Red power supply positive line
Black power supply negative line
Green measurement line (connected to the Hall line of the motor)
Yellow light line Positive line
Package content:
ebike display
Note:
. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
