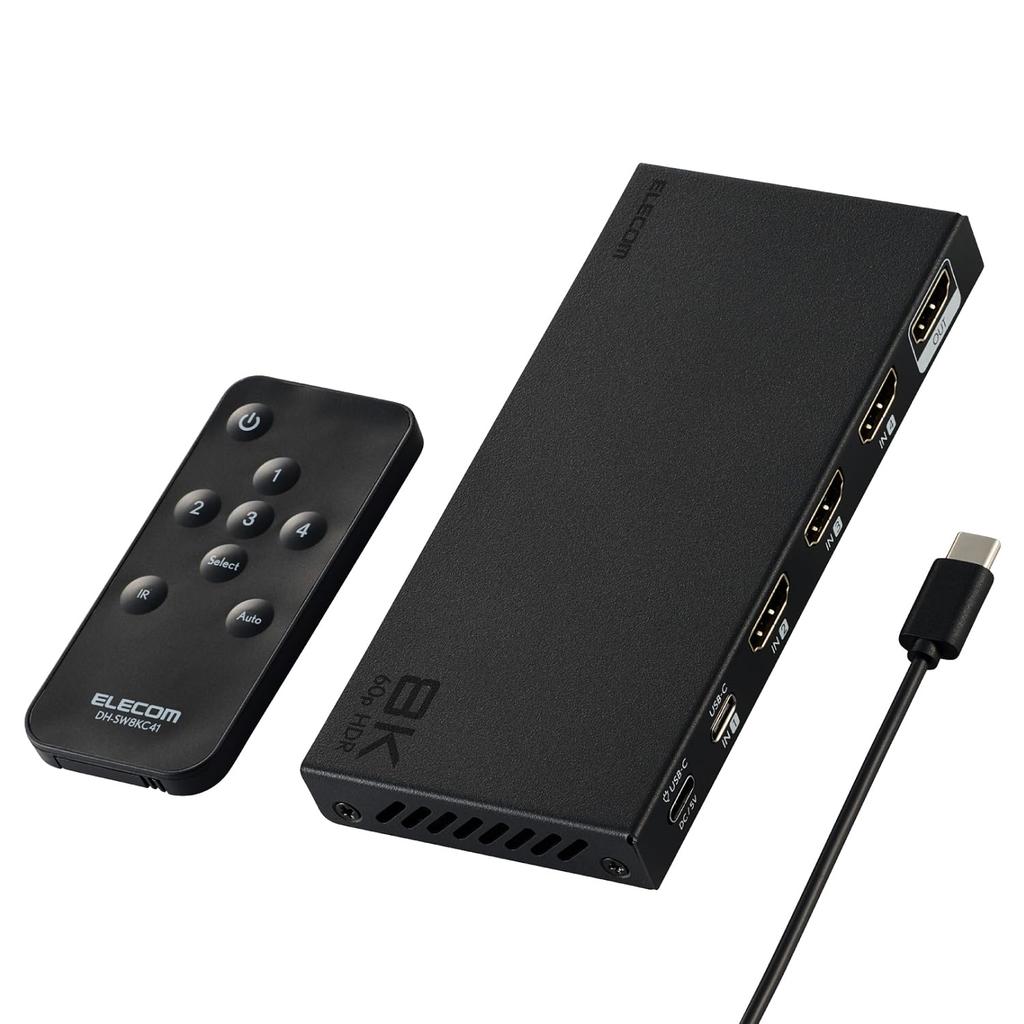

ELECOM HDMI Switcher 8K 60Hz 4 Inputs 1 Output (HDMI x3 + Type-C x1) with Remote Control [Automatic/Manual Switching Available] Compatible with PS5/PS

【Specifications】 ■Maximum Display Resolution: 8K60Hz (7680×4320, 4:2:0, 8bit) ■Main Supported Resolutions: 8K (7680×4320) 30Hz/60Hz, 4K (4096×2160) 30Hz/60Hz, 4K (3840×2160) 30Hz/60Hz/120Hz, 2K (1920×1080) 60Hz, 1080i/720p/576p/576i/480p/480i ■HDMI Standard: HDMI(R)2.1 ■HDR: HDR10, Dolby Vision(R), HLG compatible ■Data Rate: 48Gbps ■Video Frequency Bandwidth: 1200MHz ■Compatible Video Output Devices (HDMI): AV equipment, home game consoles, media streaming devices, PCs, etc. equipped with HDMI output terminals ■Compatible Video Display Devices: TVs, displays, projectors, etc. equipped with HDMI input terminals ■Number of Ports: Input: 3 (HDMI) / 1 (USB Type-C(TM)), Output: 1 (HDMI) *Maximum resolution of the USB Type-C input port is 4K60Hz.

■Connector Shape: Input: HDMI Type A 19-pin port x 3 / USB Type-C port x 1, Output: HDMI Type A 19-pin port x 1, Power: USB Type-C port ■Allowable Cable Length (HDMI): HDMI cable within 5m on both input and output sides. *For use with 4K HDR or 4K60Hz, please use our "Premium HDMI cable". For use with 8K60Hz or 4K120Hz, please use our "Ultra High Speed ​​HDMI cable".

■HDCP: HDCP 1.4/2.2/2.3 compatible ■CEC (HDMI): Supported ■ARC (HDMI): Not supported ■HEC (HDMI): Not supported ■Power supply: DC 5V/1A ■Dimensions: Approx. 139.0mm (W) x 64.5mm (D) x 14.5mm (H) ■Material: Metal ■Weight: Approx. 190g (main unit) ■Accessories: Power supply cable for main unit (USB-A - USB Type-C, approx. 1.0m (excluding connector)) x 1, Remote control for main unit operation (including battery for operation check) x 1 ■Operating temperature and humidity: Temperature: 0~40℃, Humidity: 10%~85% (non-condensing) ■Storage temperature and humidity: Temperature: -10~80℃, Humidity: 5%~90% (non-condensing) ■Warranty period: 1 year ■Package: Cardboard box

【Description】 ■3 HDMI(R) devices, 1 USB This switch allows you to enjoy movies and games on a single display simply by connecting Type-C™ devices and pressing a button. It also enables video output from USB Type-C ports on devices like iPhones and iPads. Devices without HDMI ports, such as the Macbook Air, can also be connected.

■ Port switching is possible using the buttons on the unit or the included remote control. Operation from a distance is also possible.

■ You can choose between automatic (auto mode) or manual (manual mode) for switching the signal output to the monitor, eliminating the need for manual operation.

■ Game consoles and DVD/Blu-ray recorders/players can be connected. Operation has been verified with PlayStation®5/4 Pro/4, Xbox Series X®, Nintendo Switch™, Fire TV Stick 4K, and Chromecast with Google TV (4K).

■ Supports up to 8K60Hz. High-definition, immersive video output is possible.

■ *When connecting PlayStation®5, support for resolutions and frame rates up to 4K/120Hz has been confirmed.

■*The USB Type-C input port supports up to 4K60Hz regardless of the connected device.

■HDCP 1.4/2.2/2.3 support allows use with copyright-protected content such as 4K broadcasts and movies.

■Supports DTS-HD Master Audio™ and Dolby True HD. Enjoy movies, music, TV programs, and other content with high-quality sound.

■Supports a high frame rate of 120fps and VRR (Variable Refresh Rate). Allows for smoother image display. Enjoy clear images with less motion blur even in fast-moving scenes such as action games and sports viewing.

■ALLM (Automatic Low Latency Mode) enables rapid image processing. Minimizing input lag allows for faster and more accurate operation in FPS and action games.

■Compatible with Windows and macOS. Convenient for connecting two or more computers in the office or at home.

■*Operation is not guaranteed with all devices.

■Power is supplied via the USB Type-C port, ensuring stable video output.

■Compact size that doesn't take up much space even when placed around a display or TV.

■Features a metal case with excellent heat dissipation efficiency and noise resistance.

■LED lamp on the product body displays the connected channel. You can check the operating status at a glance.

■Includes a USB-A to USB Type-C cable for power supply to the unit.

■*HDMI input cable and AC adapter are not included. Please prepare them separately.

■*The USB Type-C port of the connected device and the USB Type-C cable used for connection must support Display Alt mode of USB 3.1 or higher.

■*USB Type-C and USB-C are trademarks of USB Implementers Forum.

■This product meets at least one of our company's environmental certification standards and displays the 'THINK ECOLOGY' mark.

■Committed to environmental conservation, the product packaging is made only of paper, cardboard, and plastic bags.

Seamlessly switch between 8K video experiences with this single unit. This switch connects up to three HDMI(R) devices and one USB Type-C(TM) device, allowing you to enjoy movies and games on a single display while switching between them. It eliminates the need for multiple HDMI ports and the hassle of plugging and unplugging cables, and is easily operated with a remote control. Enjoy high-definition video up to 8K60Hz. It features a metal case with excellent heat dissipation.

Port switching is possible using the buttons on the unit or the included remote control. Operation from a distance is also possible.

You can choose between automatic (auto mode), which requires no operation, or manual (manual mode), which prevents accidental switching.

It can connect game consoles and DVD/Blu-ray recorders/players. Operation has been verified with PlayStation(R)5/4 Pro/4, Xbox Series X(R), NINTENDO SWITCH(TM), Fire TV Stick 4K, and Chromecast with Google TV(4K).

Supports up to 8K60Hz, enabling high-definition and immersive video output.
