Type : Power Supply
Rated Capacity : ＜40VA
High-concerned chemical : None
is_customized : No
Output Current : 0-10A
Model Number : DPS3010U APS3010H
Output Frequency : 50HZ 60HZ
Brand Name : wanptek
Output Type : SINGLE
Origin : Mainland China
Certification : CE

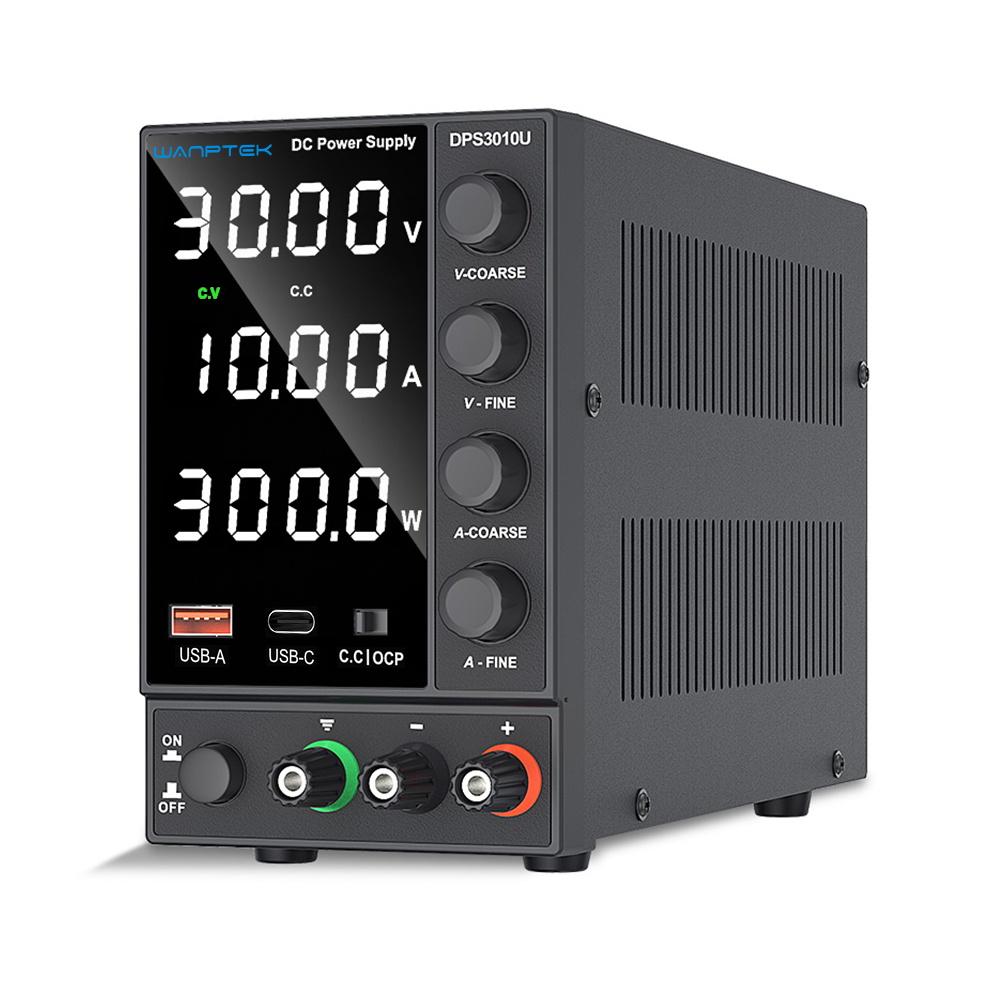

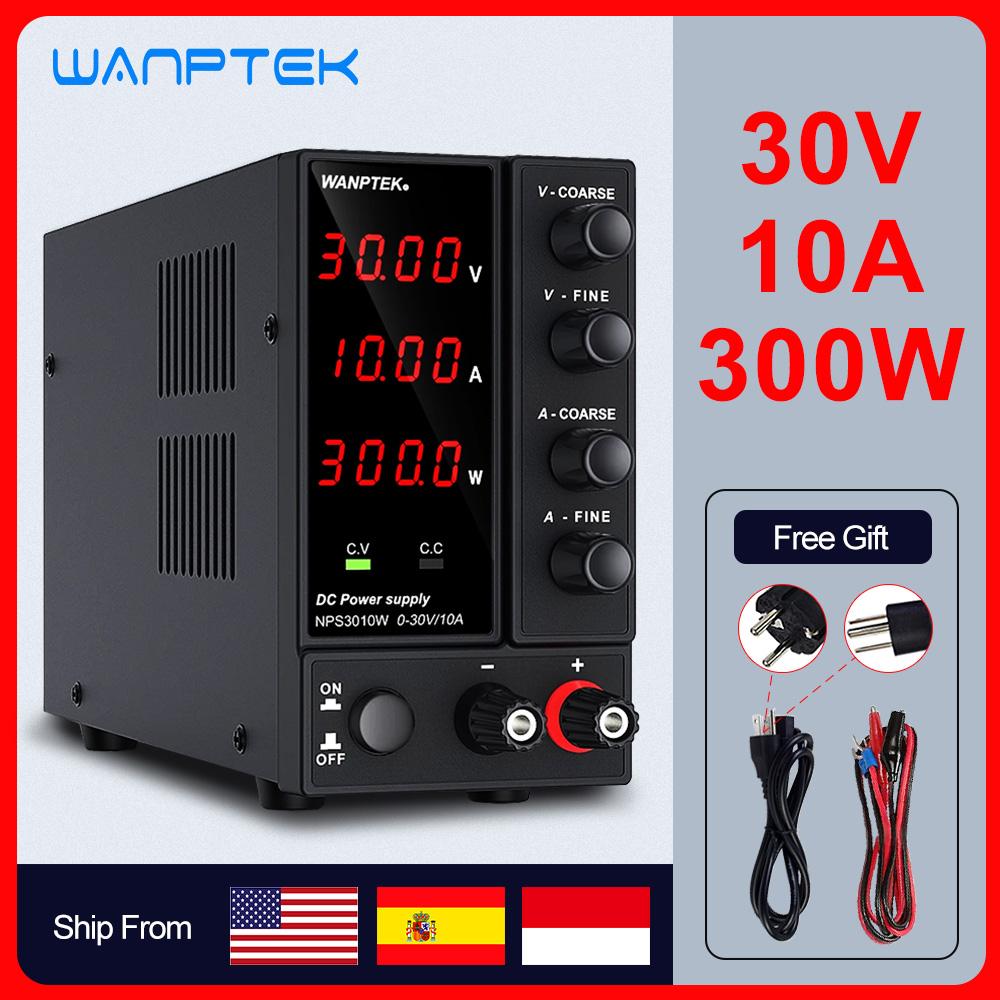

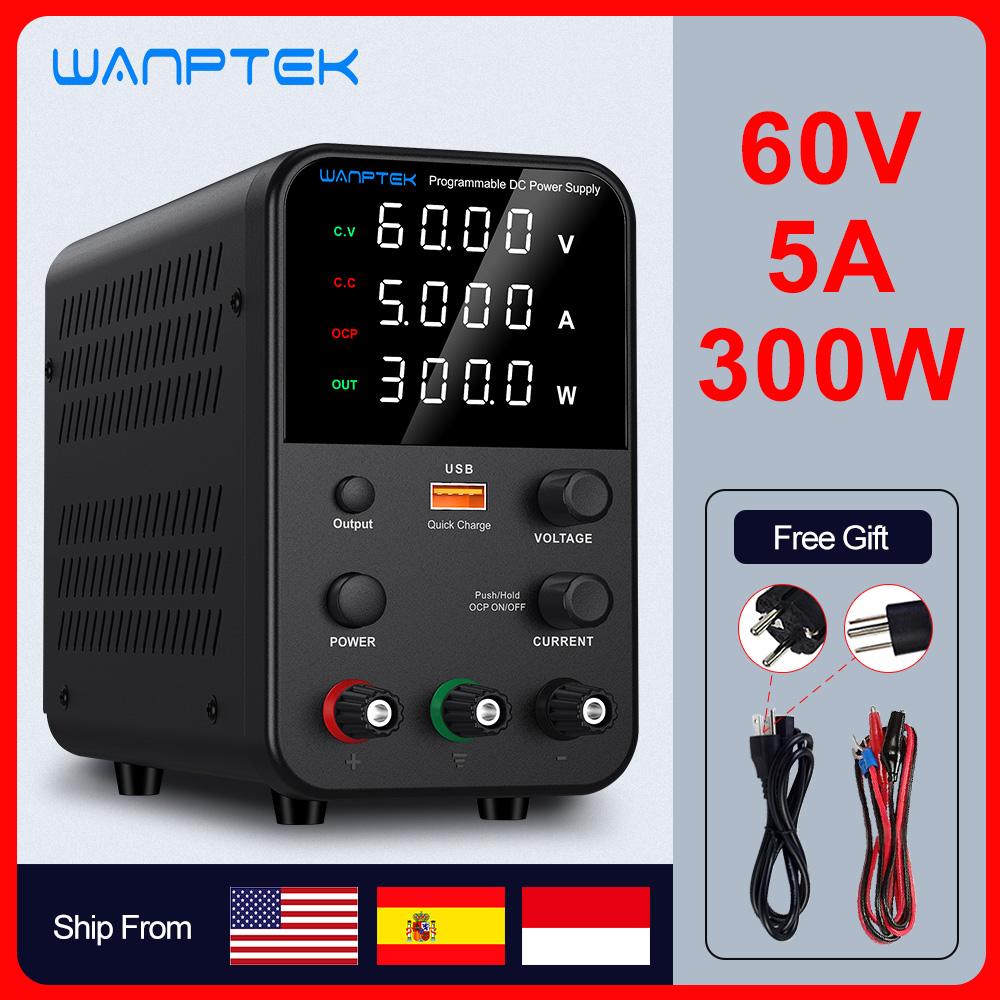

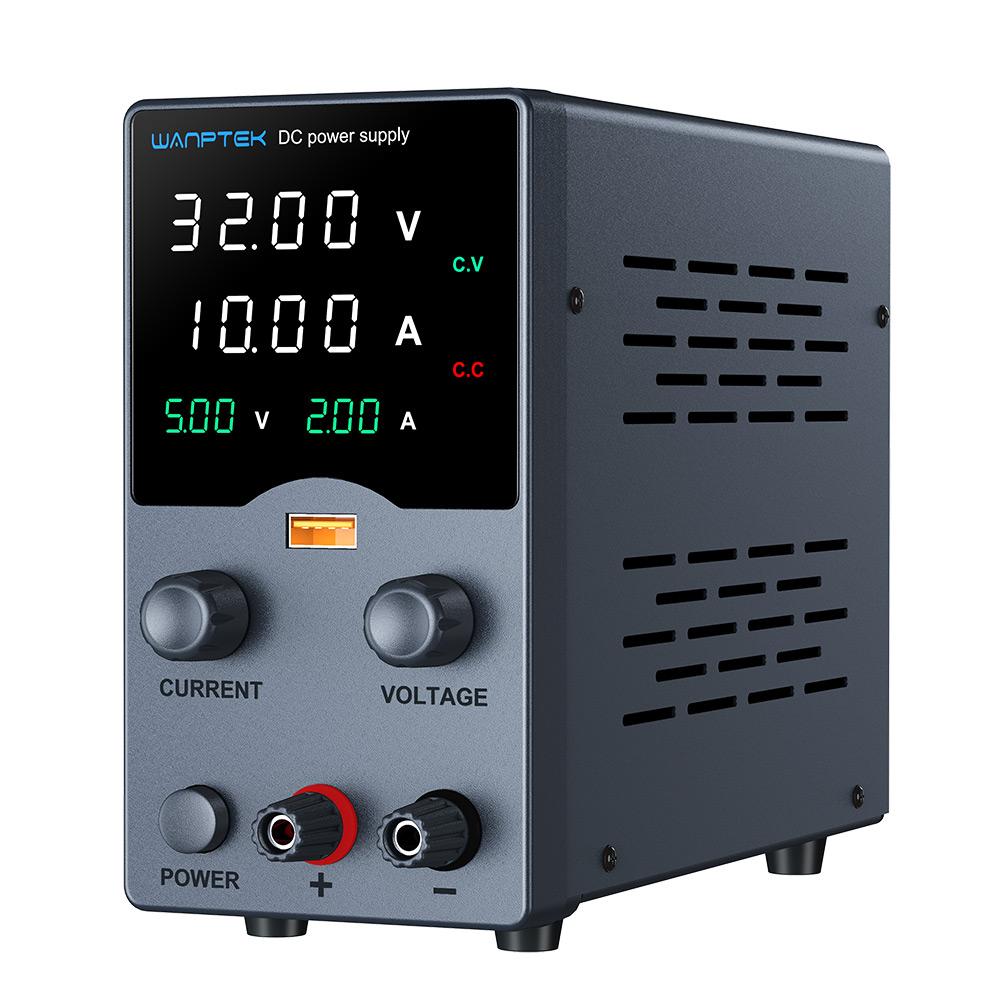

Wanptek's new series products. This model is a miniature switching DC power supply. The output voltage and current can be controlled and adjusted by variable resistors respectively, so it provides more convenience and accuracy in the adjustment of voltage and current. The panel also provides high-precision two/three-window digital tube display of voltage, current and power, so that users can intuitively see the current use status and various parameters of the machine

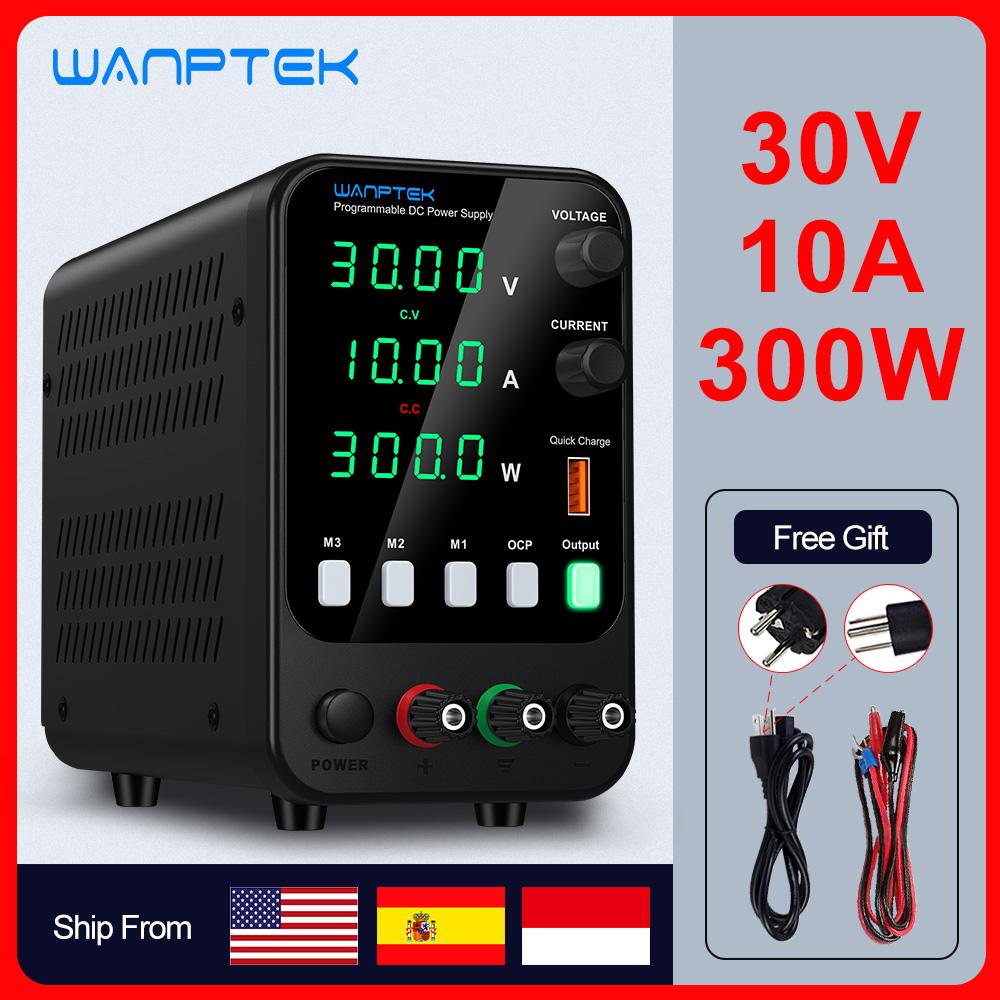

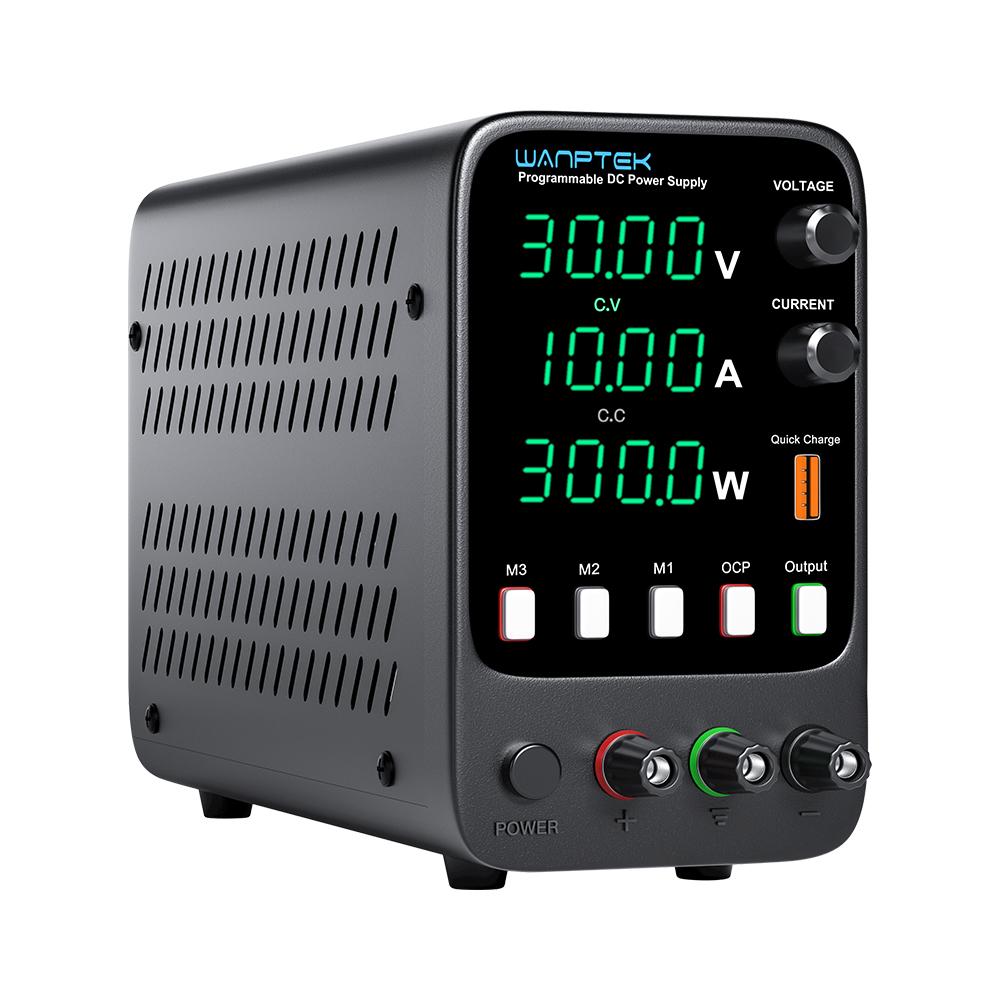

1.Small size, light weight and high power density.2.Constant pressure and constant current switch automatically.3.LED display of voltage, current and power, high precision and features of voltage stabilization, current limiting, and simple operation.4.Adjustable Output Voltage & Current: output voltage and output current can be continuously 5.adjusted between 0 and nominal value with fine regulating and coarse regulating6.it has over voltage protection(OVP), over current protection(OCP), over temperature protection7.Temperature controlled fan cooling, low noise, long life.8.Dual voltage input and convenient choice.9.Output Voltage ranges from 0 to rating voltage with continuous adjustment .10.Output current ranges from 0 to rating current with continuous adjustment11.AC 110v and 220vcan work, rest assured to choose.12.Encoder adjustment (With memory storage function)(Optional)DC power supply FCC & CE certified product【STORAGE AND RECALL MEMORY FUNCTION】:Features 3 buttons with Storage and recall memory function. Easily storage or recall the commonly used current/voltage only by pressing the button. Support Constant Current (C.C.) and Constant Voltage (C.V.) modes. Memory Function1) Rotate the Knob to set the value you want to save. 2) Long press the "M1" button until the indicator is on, which means the value saved in the "M1" button successfully. 3) Press the "M1" button to light the button. The saved value will be read when the indicator is on. (M1/ M2/ M3 button works essentially the same way).
Output Power
300W/310W/320W
Output voltage
0~30V/32V/60V/62V
Output current
0~5A/10A
working environment
input voltage:AC 230V/115V±10%;50Hz/60Hz
Working temperature:0℃～40℃;relative humidity:<80%RH
Storage temperature:-10℃～70℃;relative humidity:<70%RH
Constant voltage CV
Voltage stability:0.1%±3mV
Load stability: 0.2%±3mV
Ripple voltage:≤0.5% Vp-p
0 to rated voltage continuously adjustable
constant current CC
Current stability:0.1%±3mA
Load stability: 0.2%±3mA
Ripple current:≤0.5% Vp-p
Recovery time:≤500μS
Temperature coefficient:≤100ppm/℃
0 to rated current continuously adjustable
display
LED digit display
Display accuracy:0.5%±digits
Display resolution: voltage 0.01V, current 0.001A
1. Production line test.2. Mobile phonemaintenance, computermaintenance, electrical appliance maintenance,Car DVD, car audio.
3. Product aging, electroplating,such as resistors, capacitors, relays, DC motors, LEDs, etc.
4. Charge the battery.
5. Laboratory, scientific research teaching,factory, maintenance power supply.school laboratories scientific research and production line use
6. other occasions requiring DC power supply.
1x DC power supply
1x power cord (EU,US,UK,AU)
1x Test line
1x Instructions
