●Compatible with a variety of items
With a maximum pressure of 1,100 kPa, it can inflate and deflate car and bicycle tires, as well as leisure items such as swim rings and air mattresses.
*The built-in pressure gauge is for reference only. Please check the actual inflation pressure with an authorized measuring device.
Easy operation with two modes.
[High-Pressure Mode] Inflate with a maximum pressure of 1,100 kPa
・General tires for cars, motorcycles, bicycles, etc.
・Basketballs, soccer balls, and other balls
・Beach balls, etc.

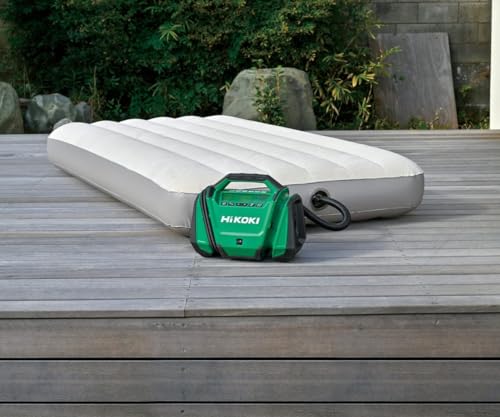

[High-Capacity Mode] Inflate and deflate leisure items
・Swim rings, air mattresses, etc. *Connect the high-capacity hose to the outlet port when inflating and to the intake port when deflating.
●Standard accessories stored inside the unit
The high-pressure hose and adapter can be stored inside the unit, making it convenient for portability and storage.

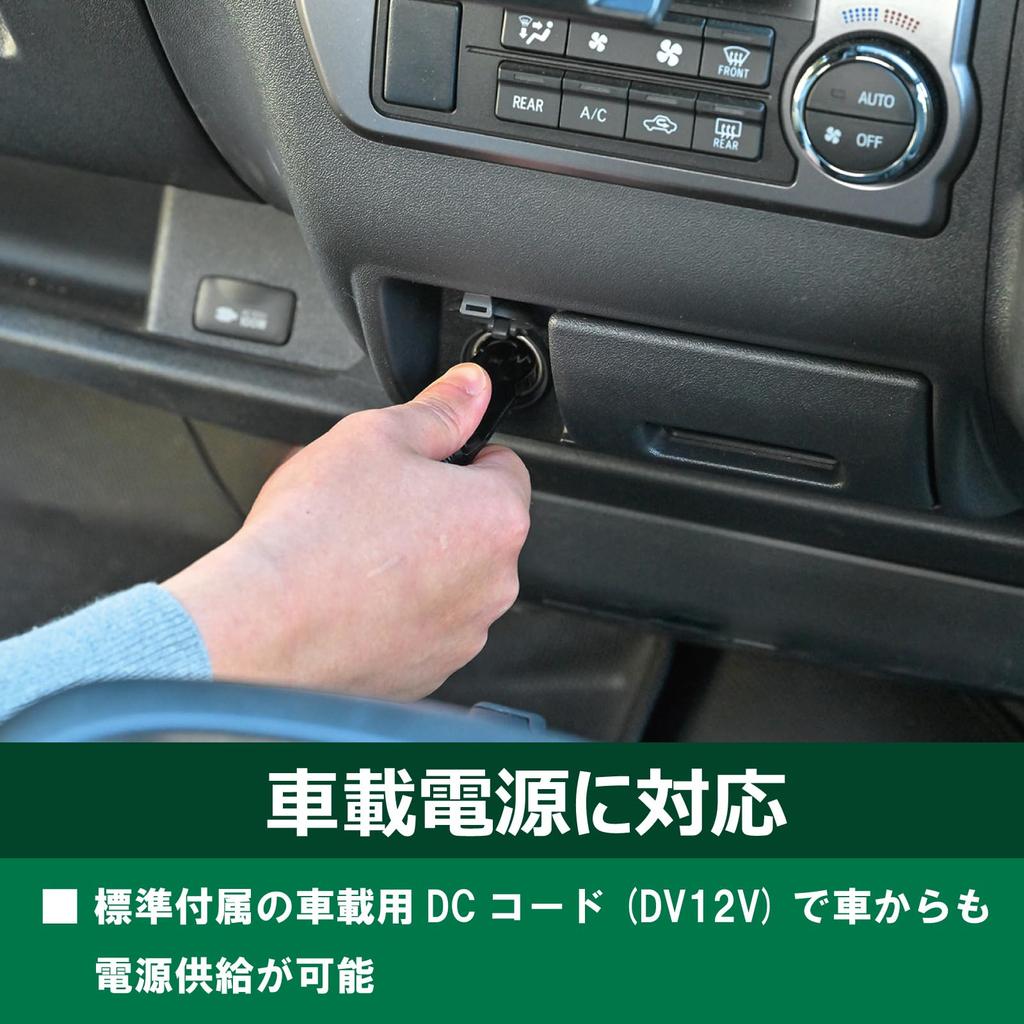

●Compatible with in-vehicle power
The included in-vehicle DC cord (DC12V) can be used to power the unit from your vehicle. *Cannot be used with a 24V in-vehicle power source.
Input: DC12V/10.5A
●Auto-stop function
Set the appropriate air pressure and the unit will automatically stop at the specified pressure. (High-pressure mode only)

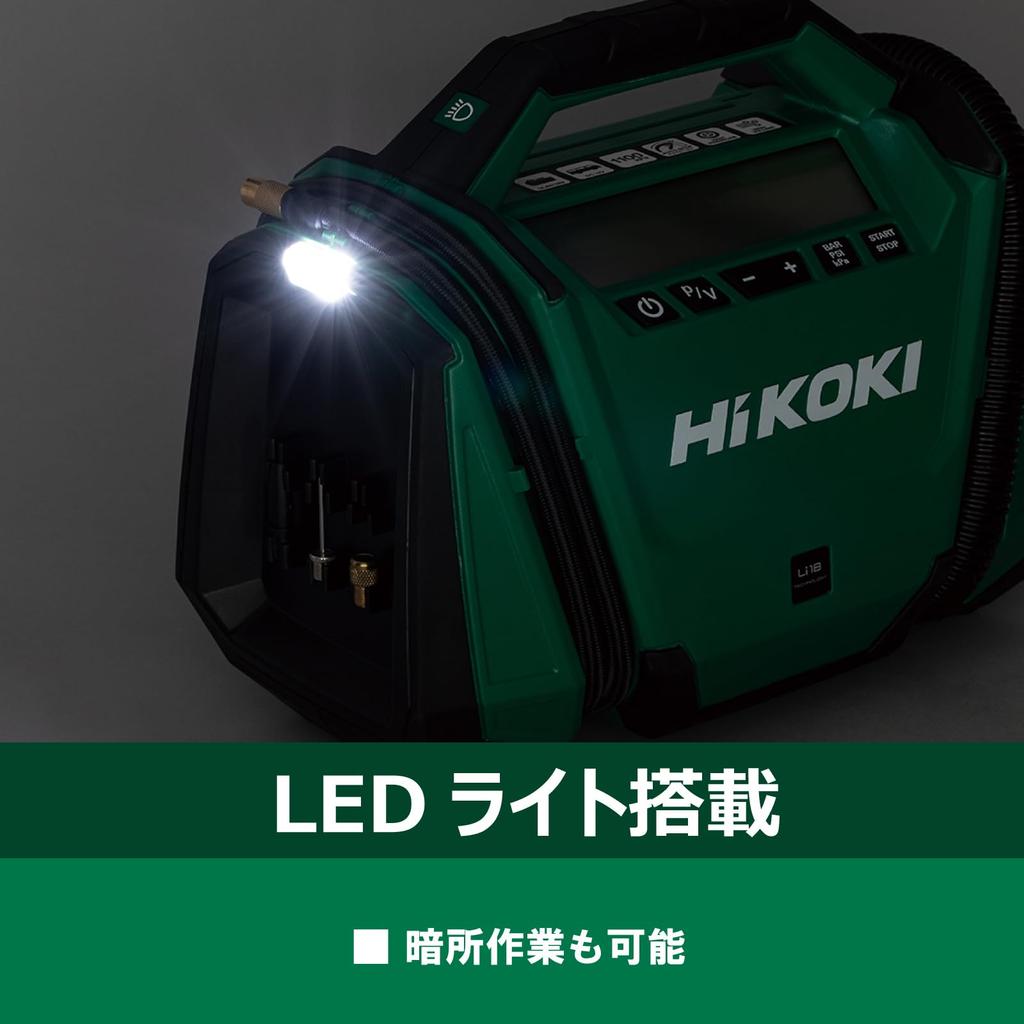

●LED light
Allows you to work in dark places.
●Estimated work volume per charge (using the BSL36A18X battery) *These figures are for reference only and may vary depending on operating conditions.
[High-Pressure Mode] Automobile tire (215/60R16): 150→250kPa (approx. 13 times, approx. 3 minutes)
[High-Pressure Mode] Road bike tire (700/25C): 0→700kPa (approx. 48 times, approx. 50 seconds)
[High-Pressure Mode] Soccer ball (size 5): 0→90kPa (approx. 110 times, approx. 40 seconds)
[High-Capacity Mode] Air mattress (990×1,910×250mm): approx. 60 times
*The figures in brackets indicate the time per charge.

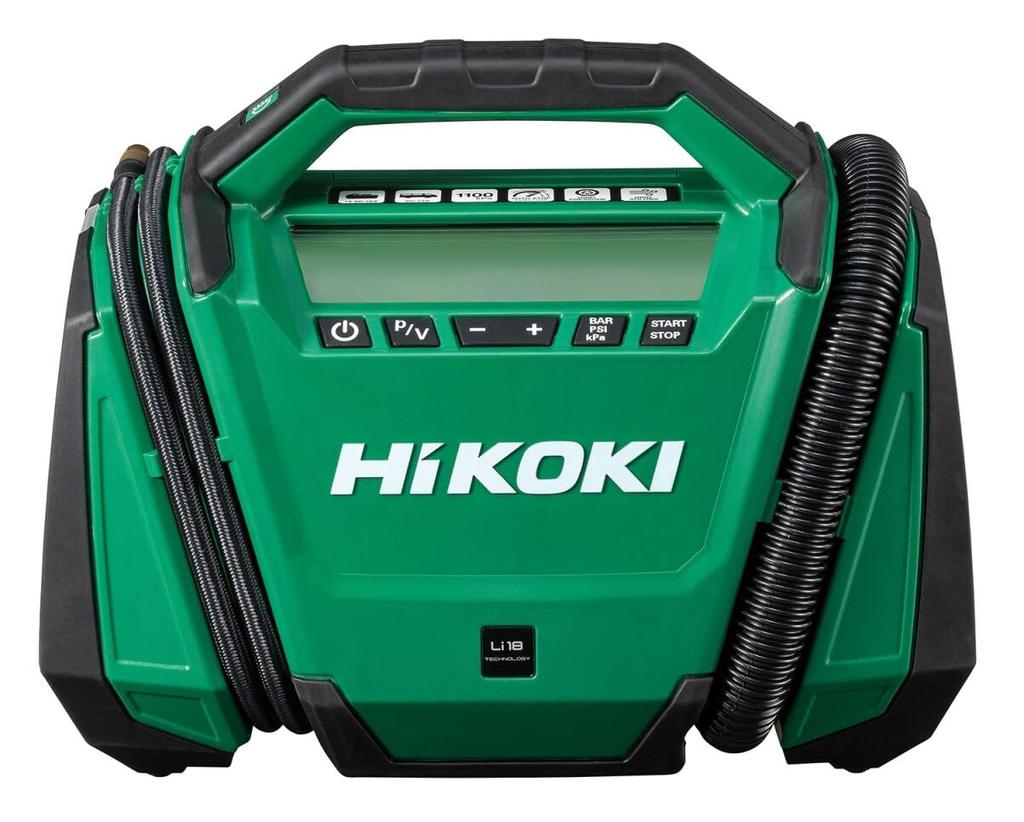

[Specifications]
Power Source: Multi-Volt Battery, 18V (BSL18xx series), 14.4V (BSL14xx series) *Conventional batteries (BSL 3620/3625/3626/2660) cannot be used.
Maximum Pressure (High-Pressure Mode): 160 PSI / 11 Bar / 1,100 kPa
Discharge Rate (18V Battery Fully Charged): High-Pressure Mode: 14 L/min (at 200 kPa), High-Capacity Mode: 430 L/min
Dimensions: Length 328 mm x Height 259 mm x Width 185 mm (with BSL36A18X installed)
Weight: 3.5 kg (with BSL36A18X installed)

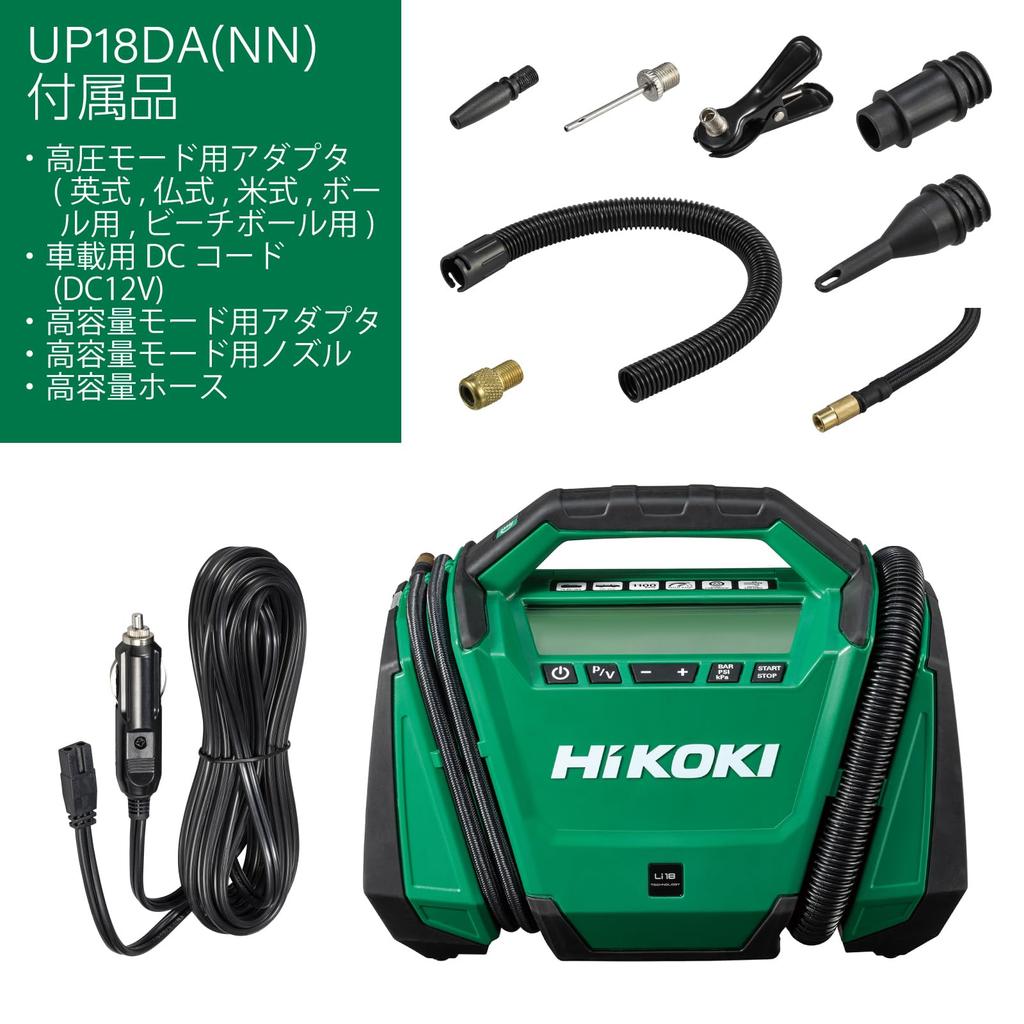

Standard Accessories: High-Pressure Mode Adapters (British, Presta, Schrader, for Balls, for Beach Balls), Car DC Cord (12V DC), High-Capacity Mode Adapter, High-Capacity Mode Nozzle, High-Capacity Hose
Maximum pressure of 1,100 kPa! This single unit can inflate car and bicycle tires, as well as inflate and deflate leisure items like swim rings and air mattresses.
The included hoses and adapters can be stored inside the unit for easy portability and storage.
Equipped with two modes, you can use them according to your needs. [High-pressure mode] Inflate at a maximum pressure of 1,100 kPa. [High-capacity mode] Inflate and deflate leisure equipment. *Connect the high-capacity hose to the outlet when inflating and to the intake when deflating.
Equipped with an automatic stop function (high-pressure mode only). Once the appropriate inflation pressure is set, it will automatically stop at the specified pressure.
Standard accessories: High-pressure mode adapters (for British, Presta, Schrader, balls, and beach balls), car DC cord (DC12V), high-capacity mode adapter, high-capacity mode nozzle, high-capacity hose
