Product Description
12KG Digital Servo, High Torque, Full Metal Gear, 180°, 7.4V, Waterproof, for Robots, RC Servo, Compatible with 1/10 and 1/8 Scale Cars
Mechanical Specifications
Gear Type: Metal
Angle Limit: 180°
Bearings: 2BB
Horn Gear Spline: 25T, Diameter: 5.9mm
Horn Type: Plastic (POM)
Case: Aluminum Alloy
Connector Wire: 320mm ±5mm
Motor: Carbon Brush Motor
Waterproof: IP65
Electrical Specifications
Operating Voltage: 4.8V to 7.2V
No-Load Speed: 0.12 sec/60°, 0.09 sec/60°
Operating Current: 210mA, 260mA
Peak Stall Torque: 11.5kg.cm, 14.5kg.cm
Stall Current: 2000mA ±10%, 2700mA ±10%
Compatible Voltage Range: 4.8V - 7.2V
Control Specifications
Control Signal: Pulse Width Modulation (PWM)
Amplifier Type: Digital Controller
Pulse Width Range: 500-2500μsec
Neutral Position: 1500μsec
Operating Angle: 180°±3° (500-2500μsec)
Deadband Width: 5μsec
Package Contents
1 Set 12KG Digital Servo
Safety Warning
/

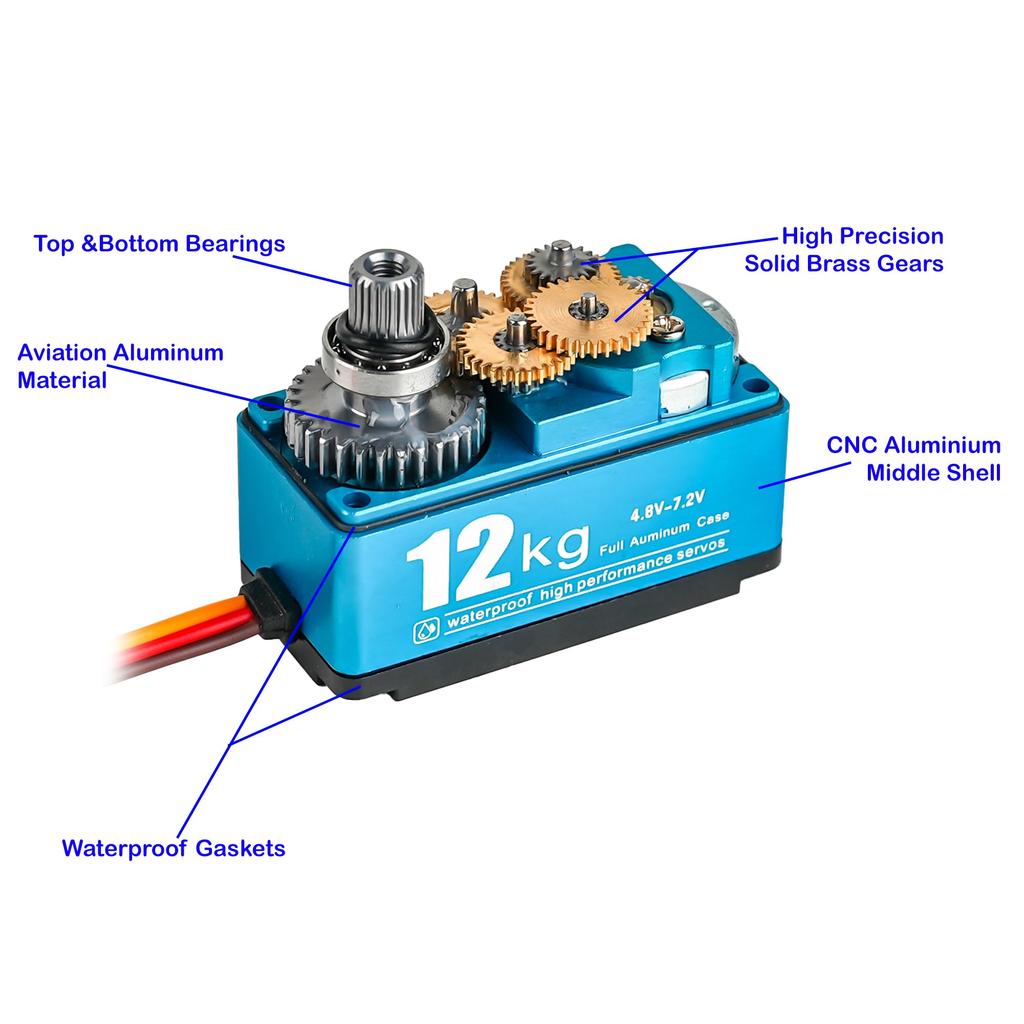

High-Torque Metal Digital Steering Gear Servo, 180°, Angle Controllable
Full Metal Gear and Dual Ball Bearings for Sensitivity and Stability; Full Aluminum Case with Triple-Layer Waterproof Ring for Enhanced Waterproof and Dustproof Performance. No-load speed: 0.12 sec/60° (4.8V), 0.09 sec/60° (7.2V); Peak stall torque: 11.5 kgf/cm (4.8V), 14.5 kgf/cm (7.2V).
Ideal for touring drift cars, RC robots, RC helicopter models, on-road cars, and fixed-wing aircraft.
Requires: One set of 12kg digital servos.
