Feature:
1. Thickened Aluminum Alloy Shell: Beneficial to heat dissipation and avoid thermal overload, and it is more effective to block the external water source and water vapor. The aluminum alloy material is light and soft, with strong hardness, good corrosion resistance, good thermal conductivity, fast heat dissipation and long service life.
2. Interface Labels: There are explanatory labels on the interface of the controller for easy installation and removal. Widely used in electric bicycles, electric bikes, scooters, etc. Brushless motor controller can provide stable speed and sensitive control of braking and direction changes.
3. LCD Panel: The shell is ABS, the transparent LCD window is imported high hardness acrylic, and the hardness value is equivalent to tempered glass. The working voltage is 24V‑48V, with a USB interface to charge other electronic devices.

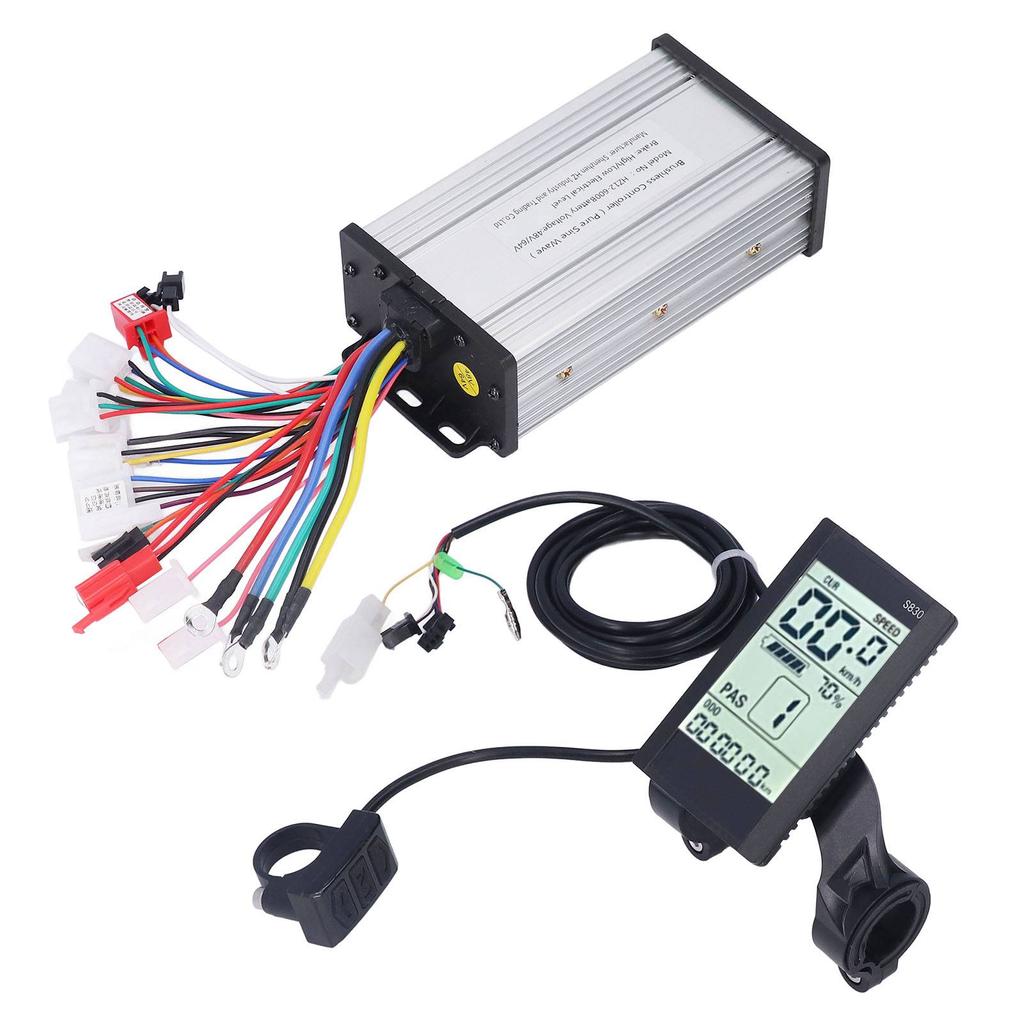

4. Display, Control And Setting Functions: Speed display, power assisted gear display, power indicator, fault prompt, total mileage, single mileage, headlight display, single driving time display; power switch control, headlight switch control, 6Km h Jog control, wheel Diameter setting, maximum speed setting, idle automatic sleep time setting, backlight brightness setting, voltage level setting.
5. Multifunction Control Panel: Displays battery percentage, speed, distance, power and possible error codes for easy troubleshooting. Support for UART communication protocol, the display protection level is IP65, enjoy riding in the rain.
Specification:

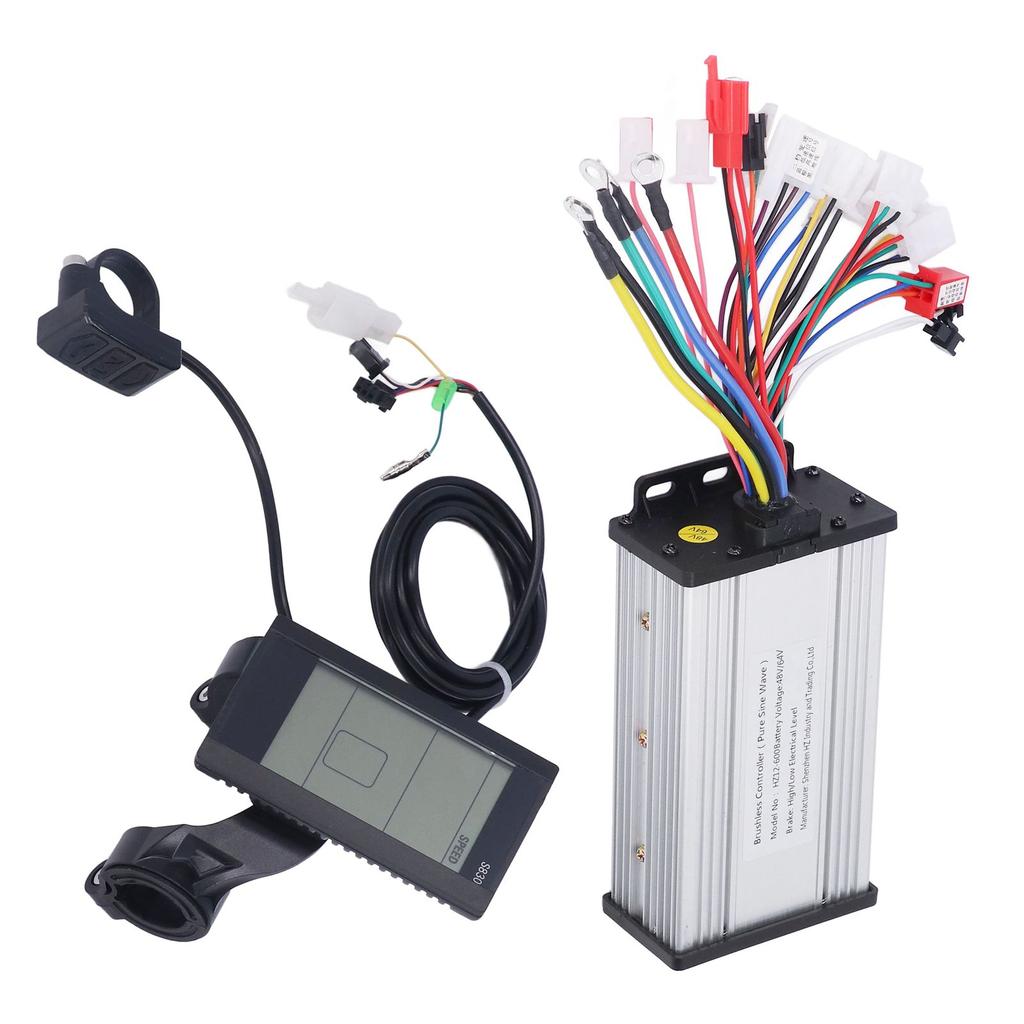

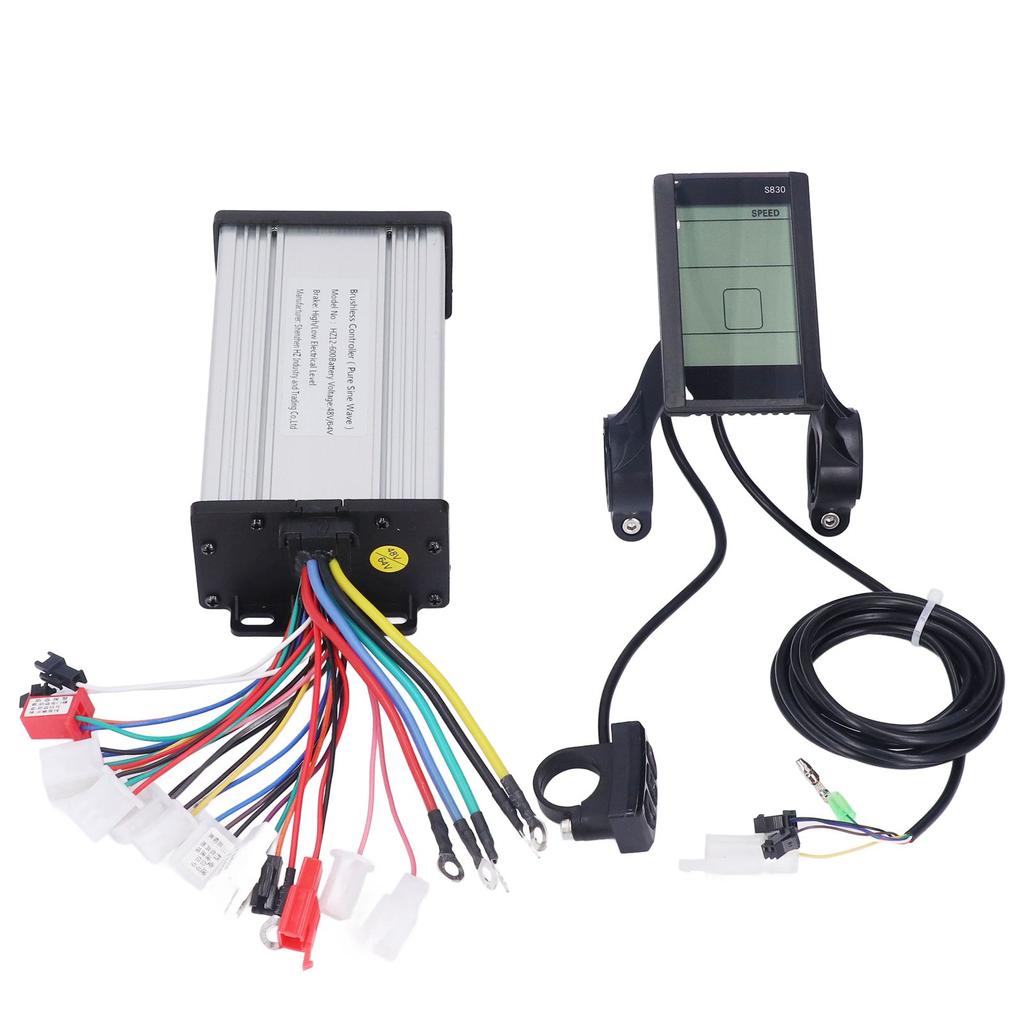

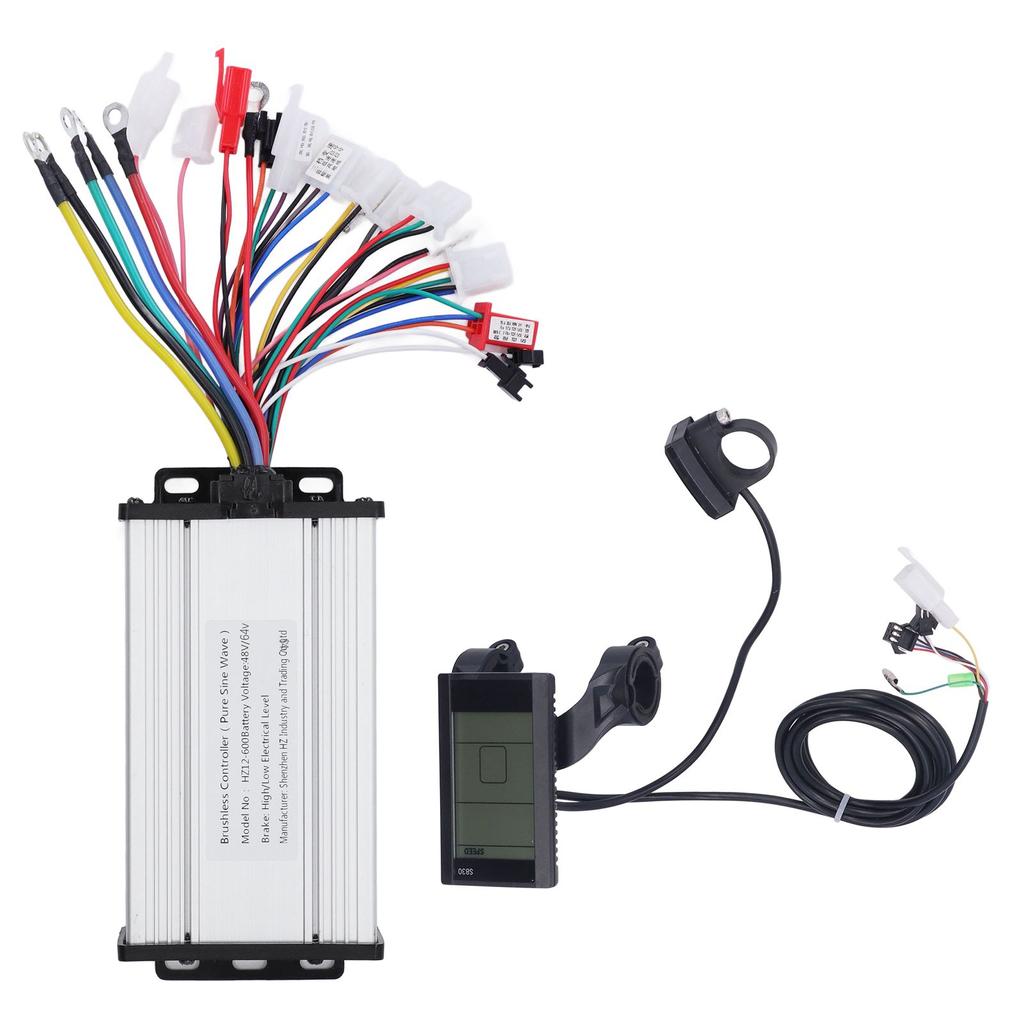

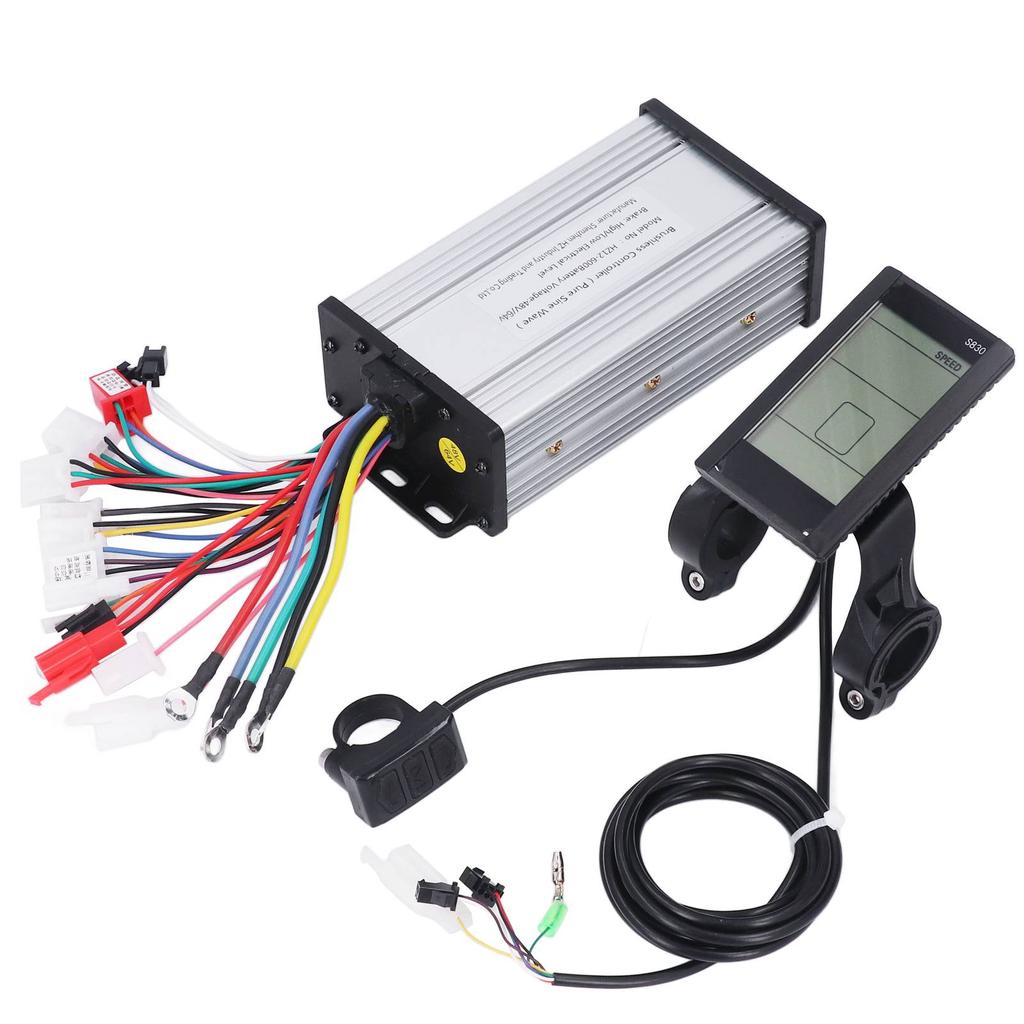

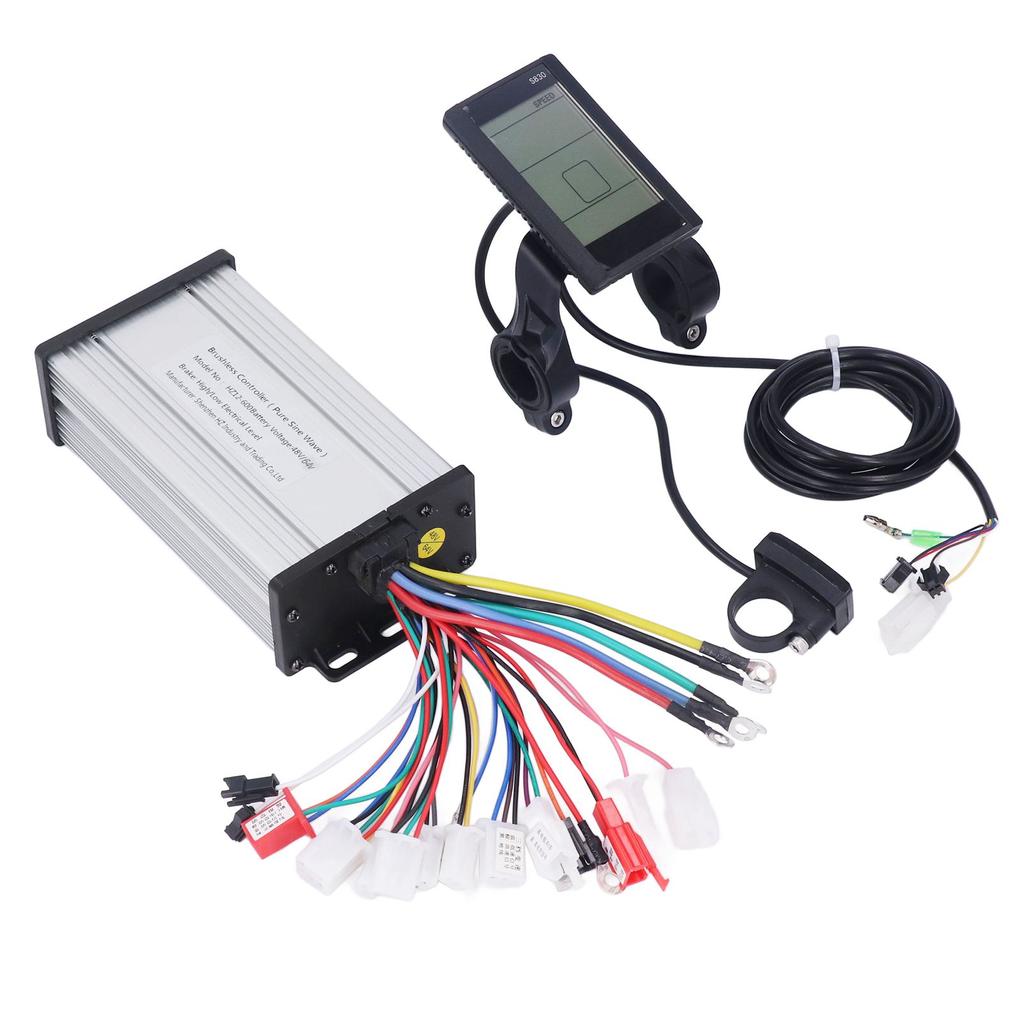

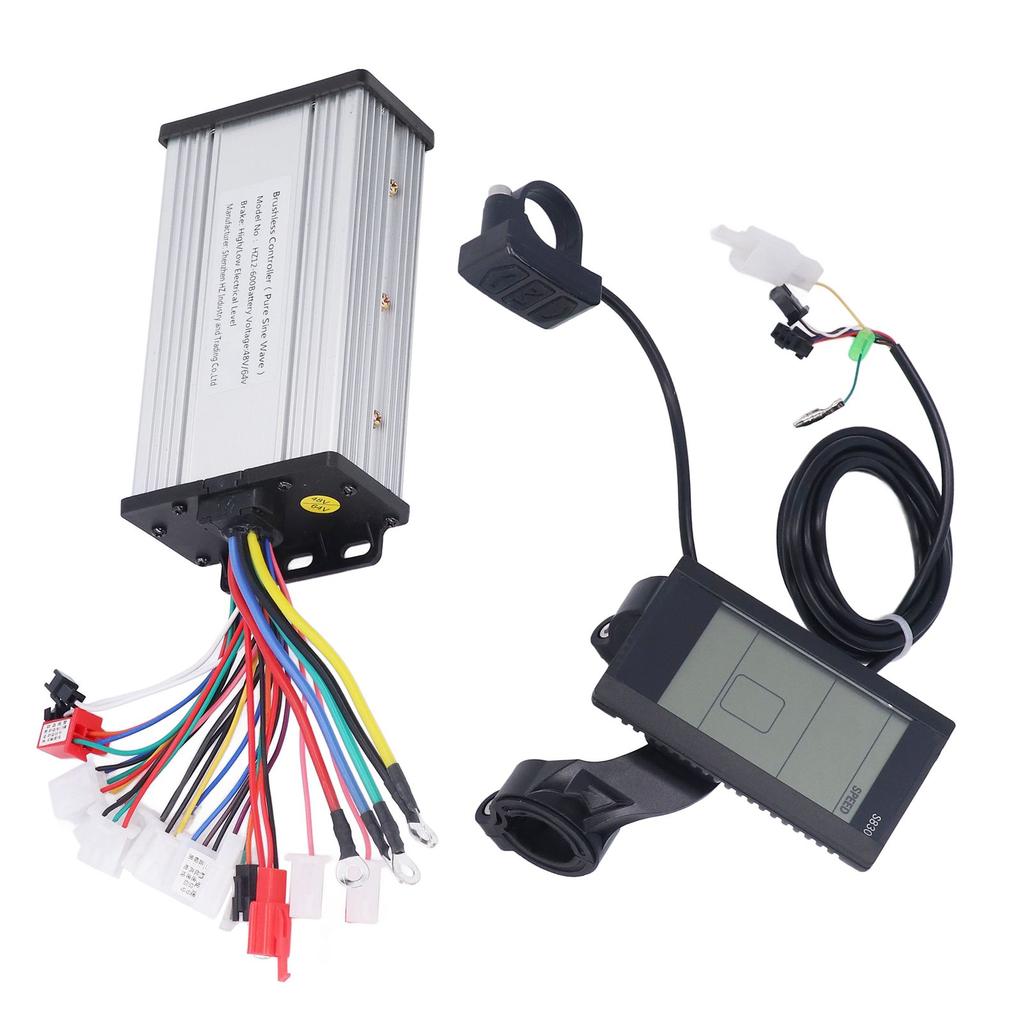

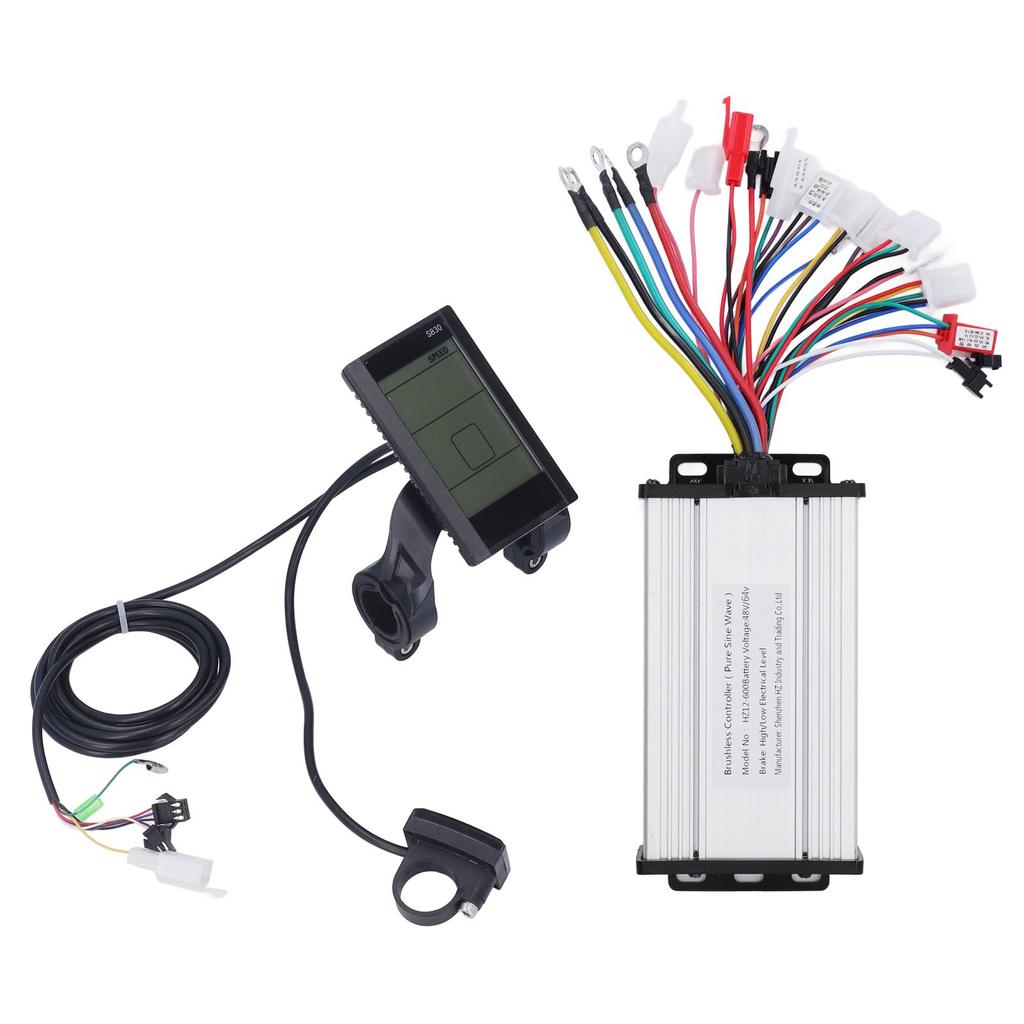

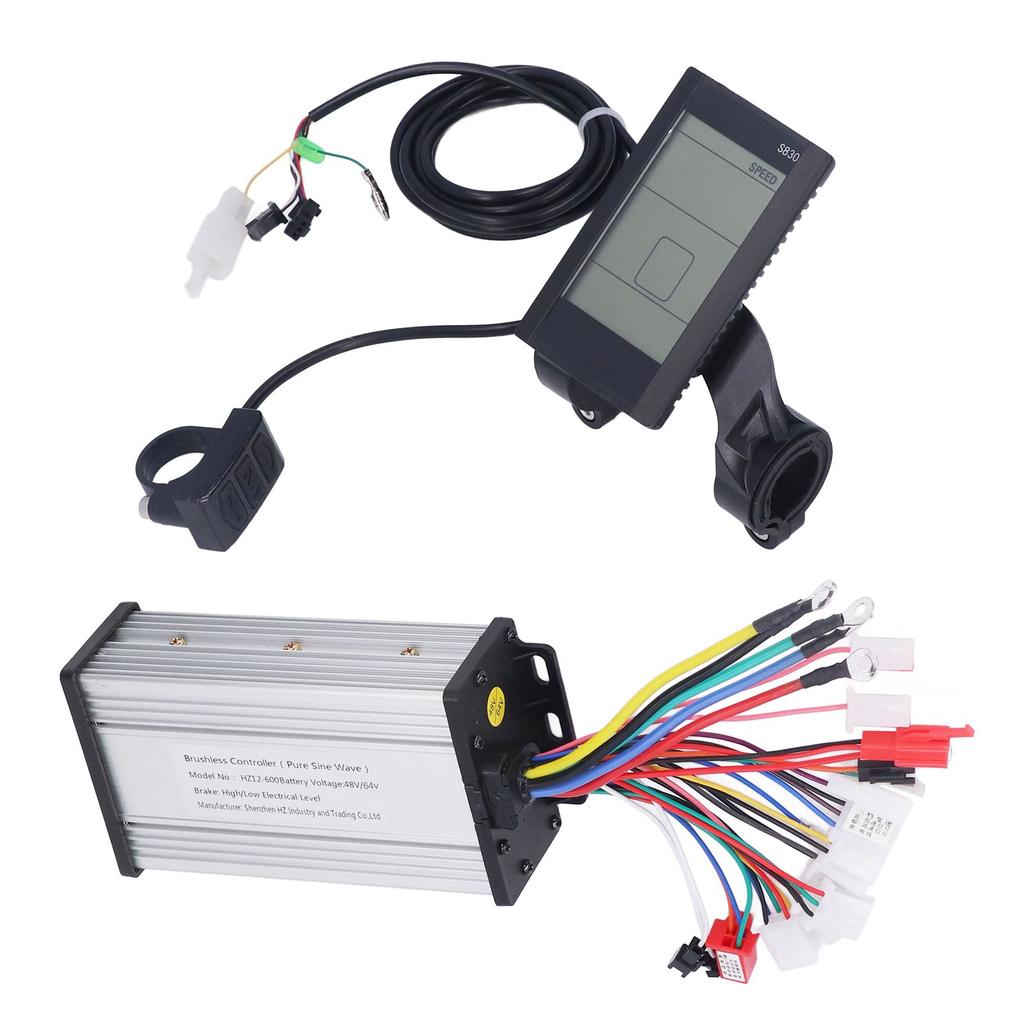

Item Type: Electric Scooter Controller Set
Material: Aluminum alloy+ABS+Acrylic
Weight: Approx. 750g 26.5oz
Brushless Controller:
Voltage: 48V 64V
Power: 600W
LCD Panel:
Voltage: 24V 36V 48V
1Pc Electric Door Lock
2Pcs Positive and Negative Poles of Power Supply
3Pcs Motor Phase Wires
1Pc Anti Theft Alarm Wire (Red: Positive, Black: Ground)
1Pc Anti Theft Alarm Line (Orange: Anti Theft Electric Door Lock, Blue: Anti Theft Signal, Green: Sensitivity Line)
2Pcs 3 Mode Default Pink Line
1Pc High Battery Brake (Purple: High Electric Brake Signal)
1Pc Button 3speed Cable (Pink: Button Signal, Black: Ground)
1Pc Reversing (Gray: Reversing Signal Black: 1 Ground Wire)
1Pc Motor Hall (Red: 5V Positive, Black: Ground, Yellow: Green And Blue Hall)
1Pc Gear Shift (Blue: Low Speed Signal, Brown: High Speed Signal, Black: Ground Wire)
2Pcs White Line Blackhead: Learning Line
1Pc Orange Line Blackhead: Cruise Line
1Pc Green Wire Transparent Head: Panel Wire
1Pc Blue And White Line Transparent Head: LCD Panel Line
1Pc Low Battery Brake Cable (Black: Bottom Wire, Yellow: Low Battery Brake Signal)
3 Wire Switch (Red: 5V Positive, Green: Signal Wire, Black: Ground Wire).
Package List:
1 x Controller1 x LCD Panel
