Feature:
1. Using advanced conductivity testing technology in the world, it can quickly and accurately detect common faults of the car s starting system and charging system
2. Car battery load tester, which can quickly detect and analyze the performance of car battery and facilitate maintenance
3. The built in thermal printer can print out the test results, which is convenient for recording and observation, and it is more convenient to understand the battery condition
4. A variety of battery test modes are optional, support battery free disassembly test, the test is more comprehensive and simple
5. Made of high quality ABS, light weight, easy to carry, replaceable battery, simple operation, convenient for daily use
Specification:

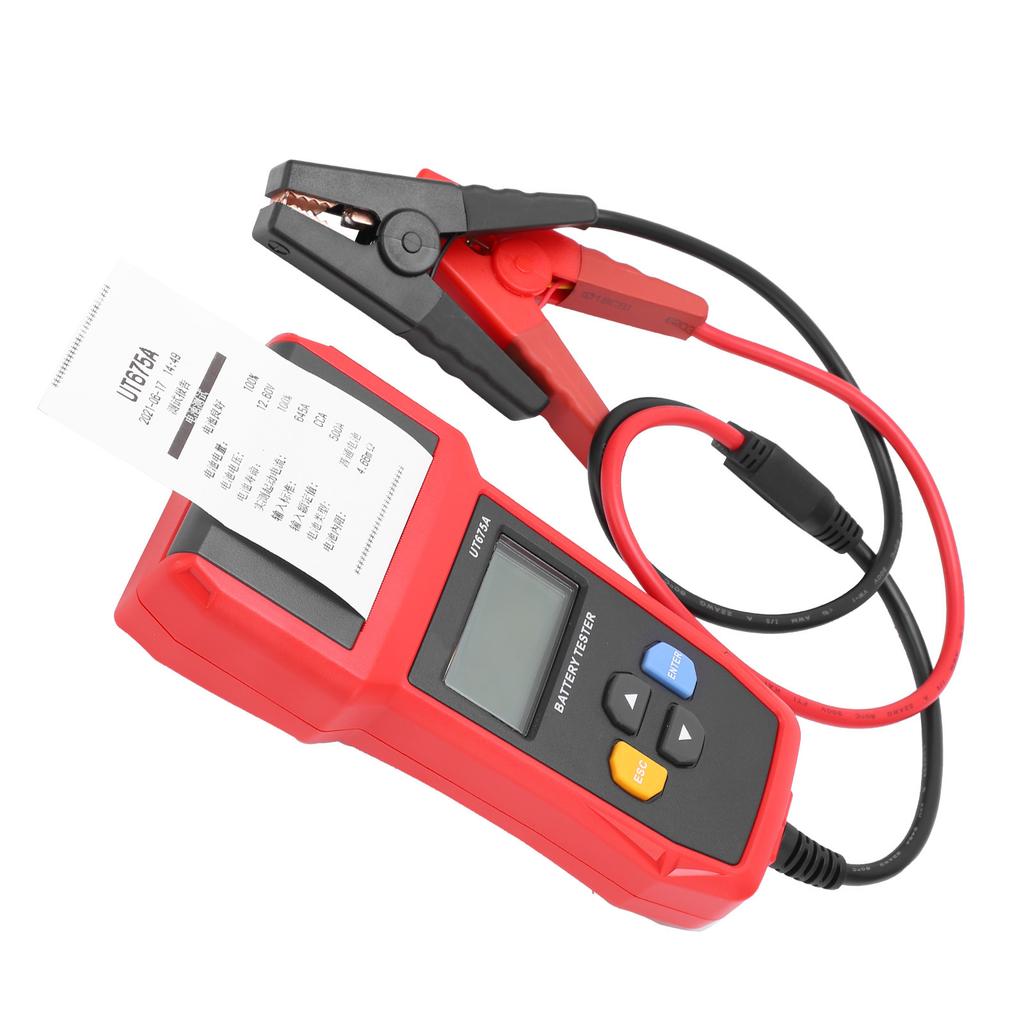

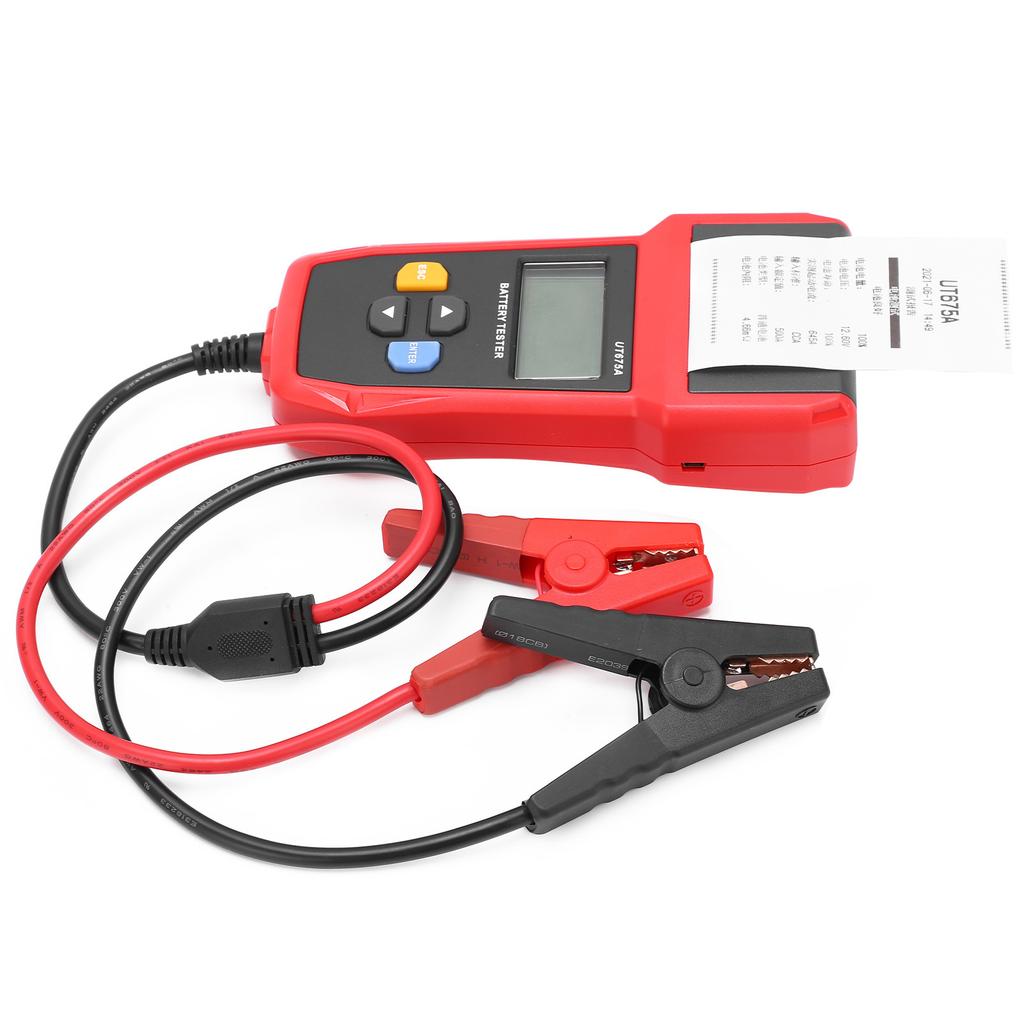

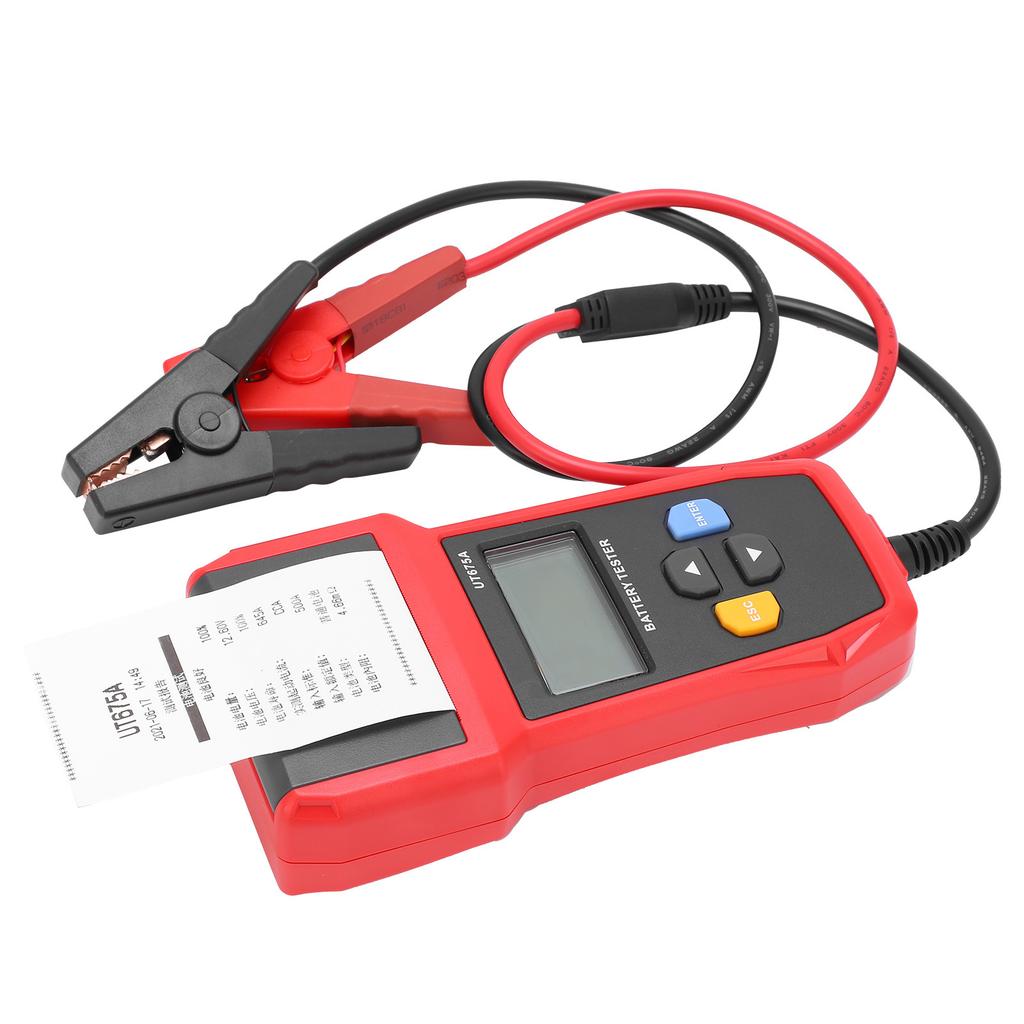

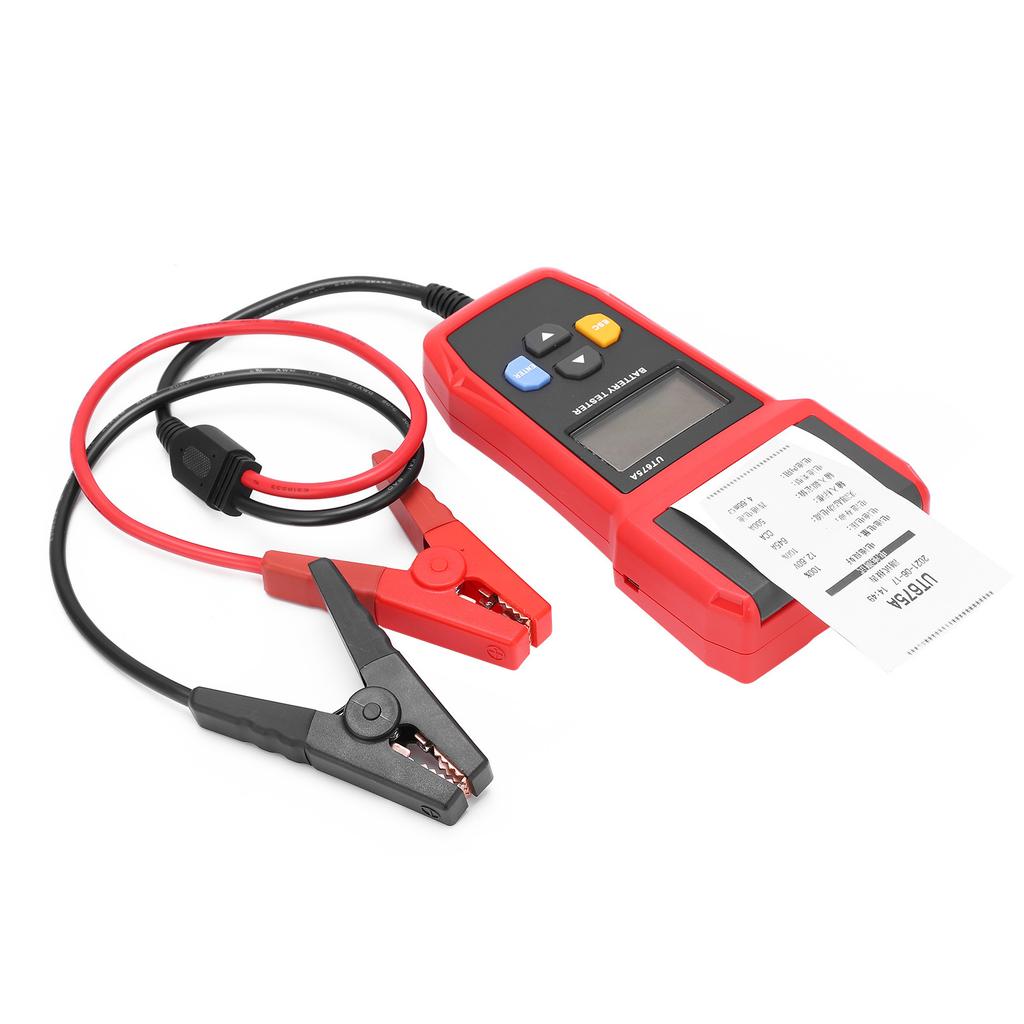

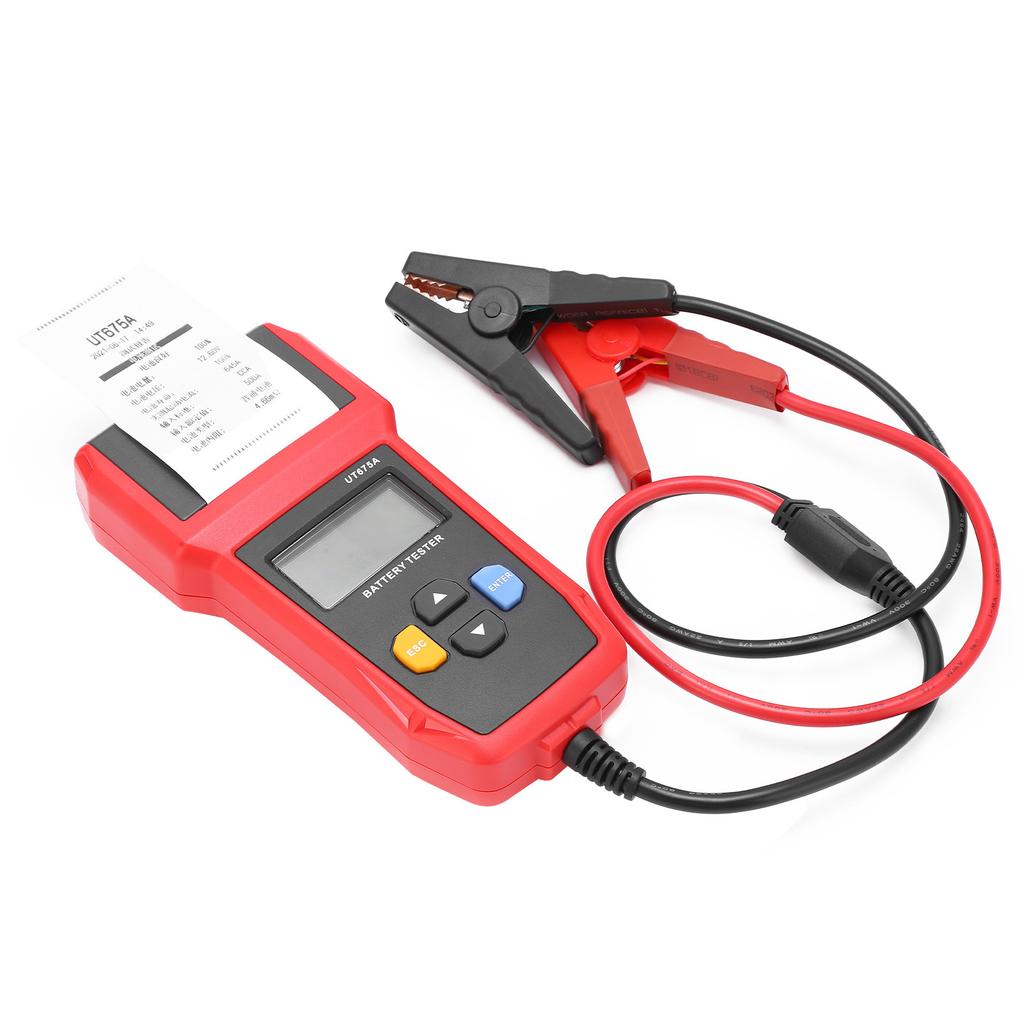

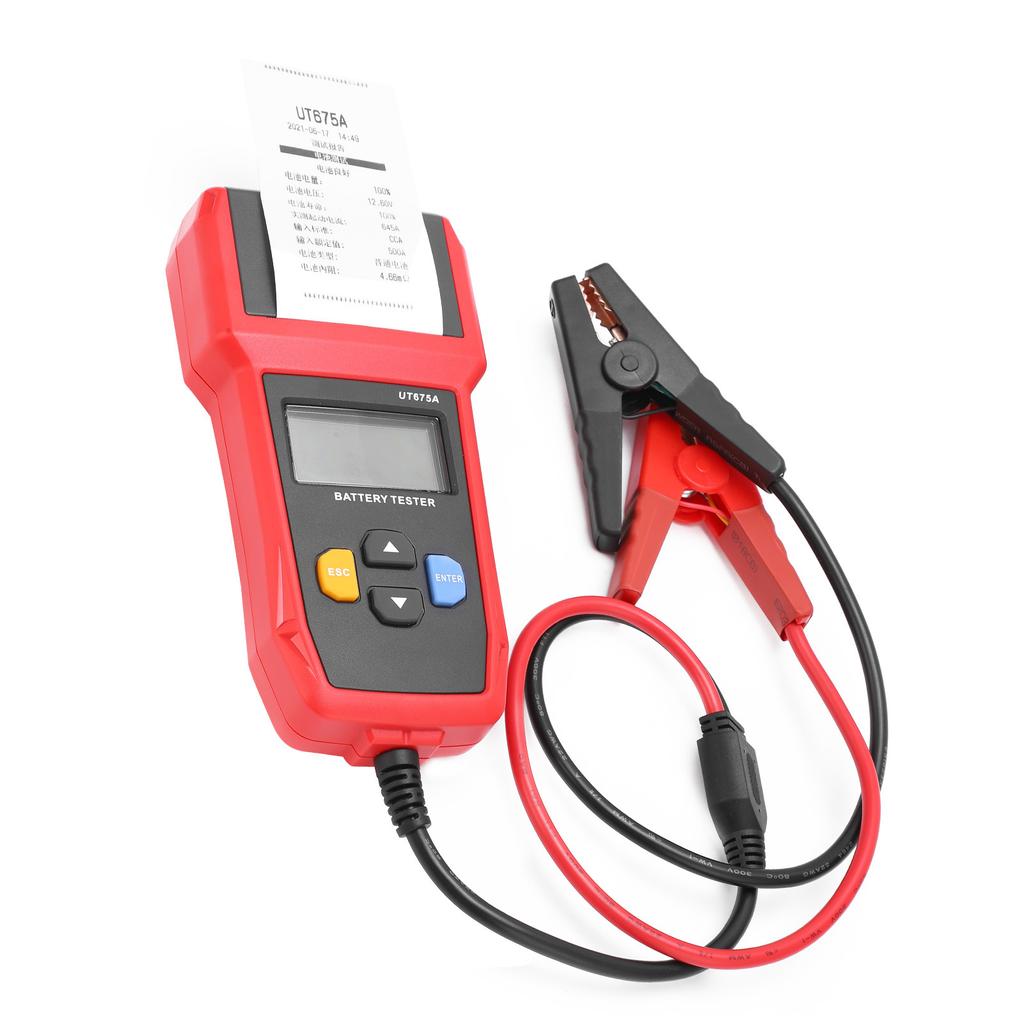

Item Type:Car Battery TesterModel: UT675A
Material: ABSBattery:1 x 3V CR2032 (battery not included)Purpose: 12V start up battery testing for gasoline vehicles, diesel vehicles, and motorcyclesMeasuring Battery Range: 30AH 200AH
Measuring Voltage Range: 7V 16V.Basic Parameters:
Model
UT675A
Applicable Battery
12V Start Up Battery
Type of Battery Under Test
1. Ordinary Battery; 2. AGM Battery; 3. GEL Battery; 4. EFB Battery
Battery Capacity Under Test
3 250AH
Standard and Scope of the Battery under Test
CCA: 40 2000, BCI: 40 2000, CA: 40 2000, MCA: 40 2000, JIS: 26A17 245H52, DIN: 40 1400, IEC: 40 1400, EN: 40 2000, SAE: 40 2000, GB: 3 250 AH
Voltage Range
7 16V DC
Internal Resistance Measurement Accuracy
+ 1percent rdg + 6 dgt
Test Methods
Four Terminal Kelvin Test Line
AH Input Fast Measurement
√
Overvoltage Input Protection
√
Charging System Test
12V 24V Charging System Test
Power Supply
Accumulator
Altitude
Operation: below 2000 meters; Non Operation: below 15,000 meters
Size (WxHxD)
Approx. 95 x 183 x 47mm 3.74 x 7.2 x 1.85in
Operating Temperature
20 50 celsius
USB Data Transfer
√
Languange
Chinese English
With Print
√
Humidity Range
Operation: below +35 celsius less than 90percent relative humidity; Non Operation: +35 celsius +40 celsius less than 60percent relative humidity
LCD
LCD (128 x 64 black and white dot matrix)
Poor Contact Prompt
√
Internal Resistance Measurement
√
Battery Life
√
Remaining battery power
√
Start system test
12V 24VStart system test
Anti Back Pressure Access
Weight
910g 32.1oz
Drop Test
1 meter height drop test function is normal

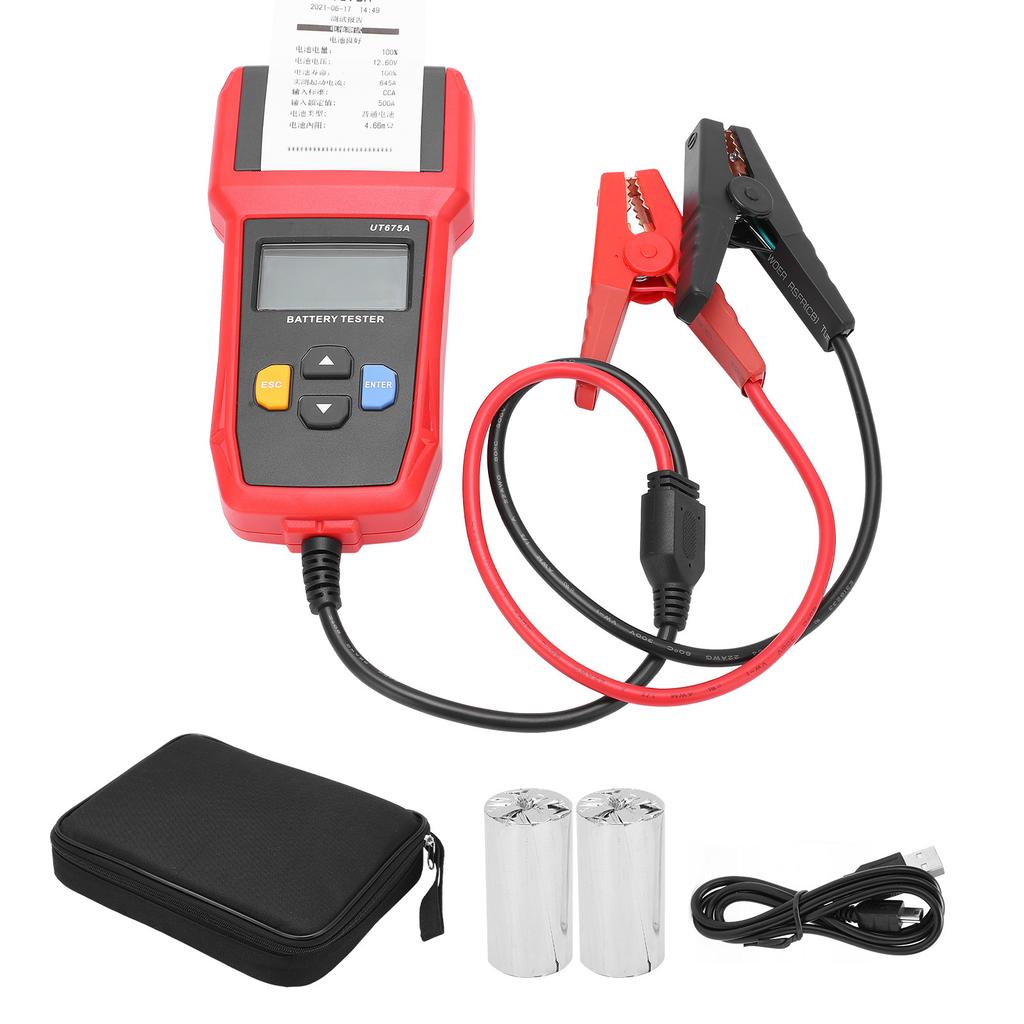

Package List:
1 x Car Battery Tester( battery not included)1 x USB Data Cable2 x Printing Paper1 x Carrying Case1 x Manual
Note:
1. Check all terminal ratings: In order to avoid the impact of fire and excessive current, please check all the ratings and marking instructions on the product. Please refer to the product manual for detailed information about the ratings before connecting the product.2. Do not open the case cover for operation: do not turn on the product when the outer cover or panel is open.3. Avoid exposure of the circuit: Do not touch the exposed connectors and components after the power is turned on.4. When you suspect that the product is malfunctioning, please do not operate: If you suspect that the product has malfunctioned, please contact UWN authorized maintenance personnel for testing. Any maintenance, adjustment or parts replacement must be performed by professional maintenance personnel.5. Maintain proper ventilation.6. Do not operate in a humid environment.7. Do not operate in an flammable and explosive environment.8. Please keep the surface of the product clean and dry.
