Feature:
1. The high definition GBS 8200 Video converter is a professional game converter, which support all games such as, Amusement, Play station, for Xbox, wii, etc.
2. It can convert CGA EGA VGA YUV Component input Signal to the HD Monitors (CRT Monitor LCD Monitor PDP Monitor) with VGA interface (VGA video signal), and automatically scan CGA EGA YUV signal, VGA output signals.
3. Supports CGA EGA VGA YUV Component Signal Input. Supports VGA Output (640 x 480, 800 x 600, 1024 x 768, 1360 x 768).
4. Supports image position control \u0026 image zoom control.
5. Supports all types of VGA monitors (CRT, LCD, PDP, Projector, etc).
6. Walmeck Portable High Definition Video Converter supports all types of VGA monitors (CRT, LCD, PDP, Projector, etc).
7. Has strong compatibility and universality of Games. Support almost all kinds of games. With the performance of TwinView output, On Screen Display (English and Chinese).
8. Greatly improve the definition of the picture.
9. Convert CGA EGA VGA YUV Component input Signal to VGA video signal
10. CGA EGA VGA signal auto scan (15KHz, 24KHz, 31KHz). YUV Component signal auto scan (480i, 576i, 720i, 1080i, 480p, 576p, 720p, 1080p).
11. On Screen Display (English and Chinese). Supports image position control \u0026 image zoom control. True digital 24 bit A D converter for true 16.7 million color conversion.
Specification:
The high definition GBS 8200 Video converter is a professional game converter, which support all games such as, Amusement, Play station, for Xbox, wii, etc. It can convert CGA EGA VGA YUV Component input Signal to the HD Monitors (CRT Monitor LCD Monitor PDP Monitor) with VGA interface (VGA video signal), and automatically scan CGA EGA YUV signal, VGA output signals. It will bring you much fun and convenience.
Features:
Convert CGA EGA VGA YUV Component input Signal to VGA video signal
Supports CGA EGA VGA YUV Component Signal Input.
Supports VGA Output (640 x 480, 800 x 600, 1024 x 768, 1360 x 768).
CGA EGA VGA signal auto scan (15KHz, 24KHz, 31KHz).
YUV Component signal auto scan (480i, 576i, 720i, 1080i, 480p, 576p, 720p, 1080p).
On Screen Display (English and Chinese).
Supports image position control & image zoom control.
True digital 24 bit A D converter for true 16.7 million color conversion.
Supports all types of VGA monitors (CRT, LCD, PDP, Projector, etc).
Specifications:
Input Power: DC 5V ±0.5V (2A) P7 or P9
Input signal:
CGA EGA: 14.5kHz 16.5kHz 23.5 25.5kHz 30.5 32.5 kHz (Auto scan) P3 or P11 or P10
RGBHV: 30.5 32.5 kHz (Auto scan) P10 or P11
VGA: 30.5 32.5 kHz (Auto scan) P10 or P11
Ypbpr: 480p, 576p, 720p, 1080p (Auto scan) P2
Ycbcr: 480i, 576i, 720i, 1080i (Auto scan) P2
Output signal:
VGA: 640 * 480, 800 * 600, 1024 * 768, 1360 * 768 P4 and P13
User controls:
Input Switch, Image Zoom, Input Zoom, Image Position, Output resolution, R G B gain adjust. MENU KEY R G B VR
Color: Green
Main item size: 11.8 * 10.8 * 1.4 cm 4.65 * 4.25 * 0.55in
Package Weight: 87g 3.06oz
Package size: 15.5 * 12.5 * 3.0cm 6.10 * 4.92 * 1.18in
Package weight: 116g 4.09oz
MENU CONTROL:
“MENU” open OSD menu, and enter.
“UP” up and increase.
“DOWN AUTO” down and reduce.
Press this key: auto scan CGA EGA signal
Press this key over 5 second and release: reset system (this operation is invalid when you open OSD menu)
“SW” switch input signal Ypbpr RGBS RGBHV (this operation is invalid when you open OSD menu).
“Clamp sp” & “Clamp” please don’t adjust this button, except the monitor has black item or picture discoloration.
For more functions control, please look at OSD to operate.
Package list:

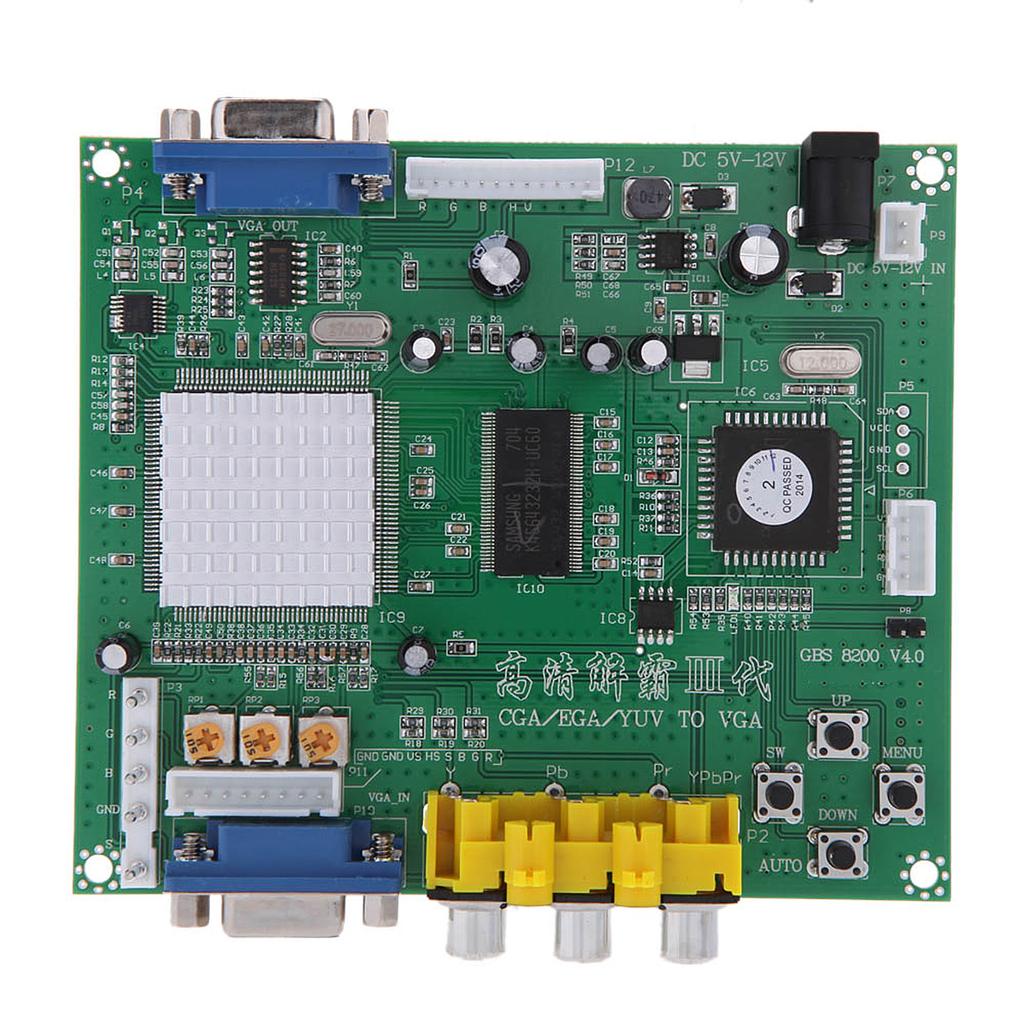

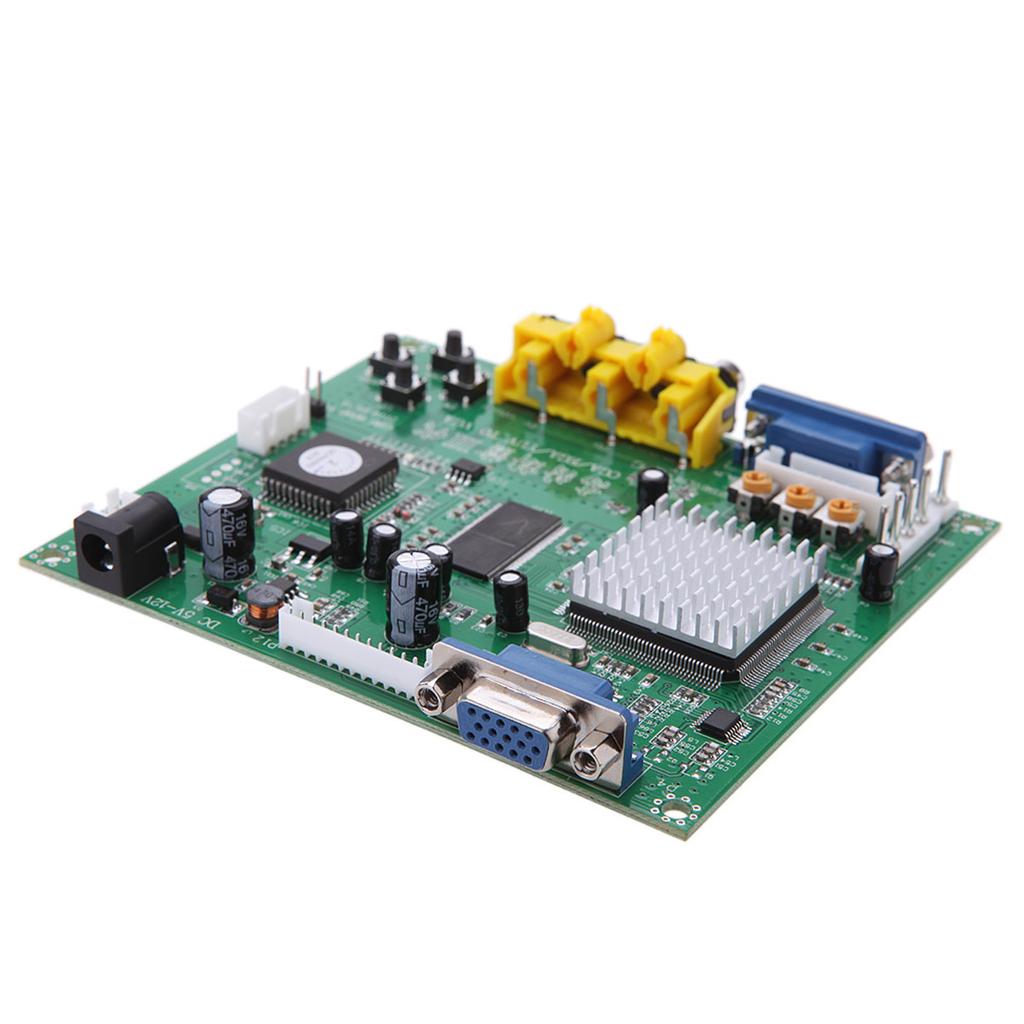

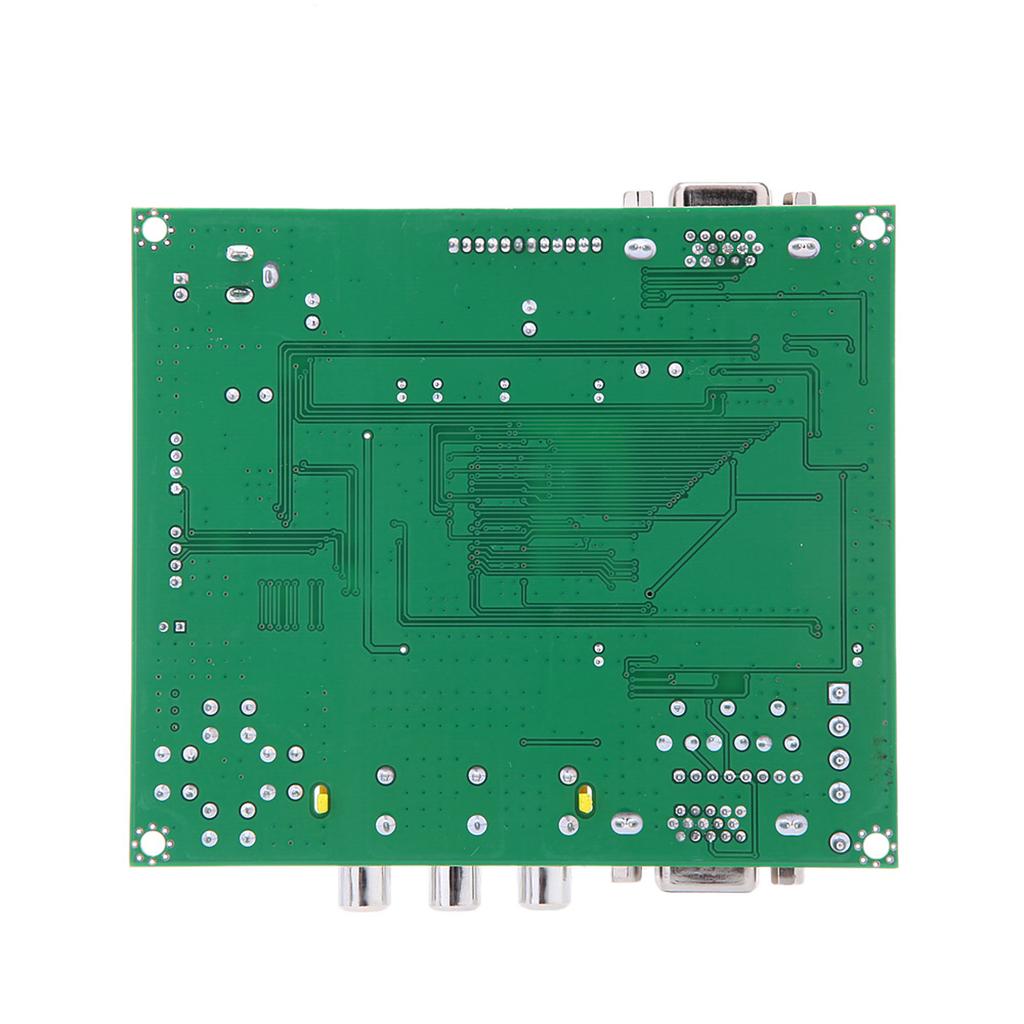

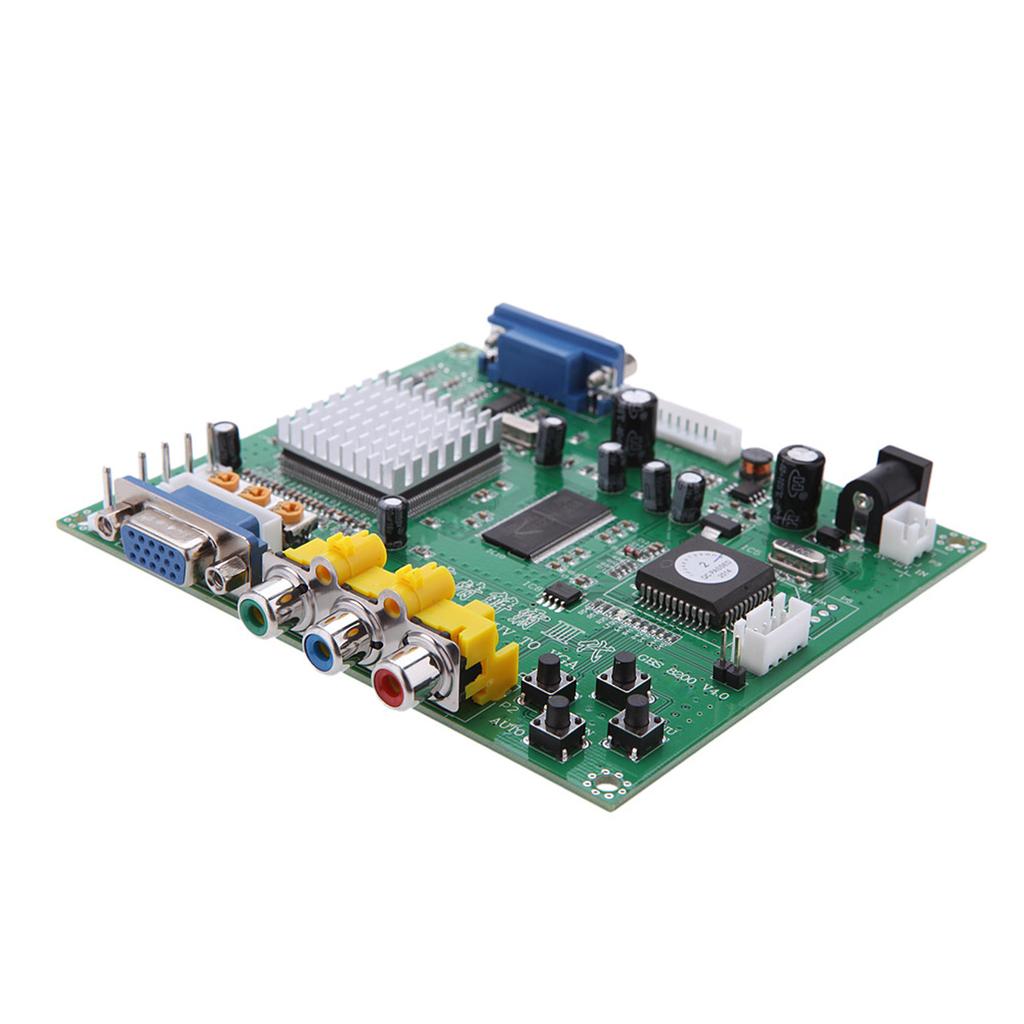

1 * CGA EGA RGB To VGA Game Video Converter Board
1 * 6pin signal wire
1 * 2pin power supply wire
Package List:
1 * CGA EGA RGB To VGA Game Video Converter Board
1 * 6pin signal wire
1 * 2pin power supply wire
