Feature:
1. Download and Communication: Supports 1 RS232 and 2 RS485 communication ports, 4 NTC, clock, CAN, weighing, can communicate with programming software simultaneously. The download speed is compatible with 9.6 to 11.52Kbps.
2. Compatible Software: Use for GX Developer or for GX Works2 for programming, downloading, debugging, and monitoring (monitoring writing is not supported).
3. 4 Communication Ports: Three communication ports can simultaneously communicate with the touch screen, protocol selection FX3U, communication parameters are 19200, 7, E, 1; One CAN communication can support up to 320 channels without occupying 485 and 232 communication ports.
4. Analog Input Output: Default 4AD 0 to 10V analog input, can be changed to 4 to 20mA, 2DA 0 to 10V analog output.
5. High Speed Input Output: Input defaults to 6 way, 100K for X0, 10K for X1 to X5 (X0 and X1 can be used as dual phase 100K); Output 200kHz for Y0 to Y5, and 100kHz for Y6 to 7.
6. Encryption Function: When the keyword is set to 12345678, the super encryption function is activated, program upload is prohibited, changing the password will clear the program, without fear of password cracking software on the market.
Specification:

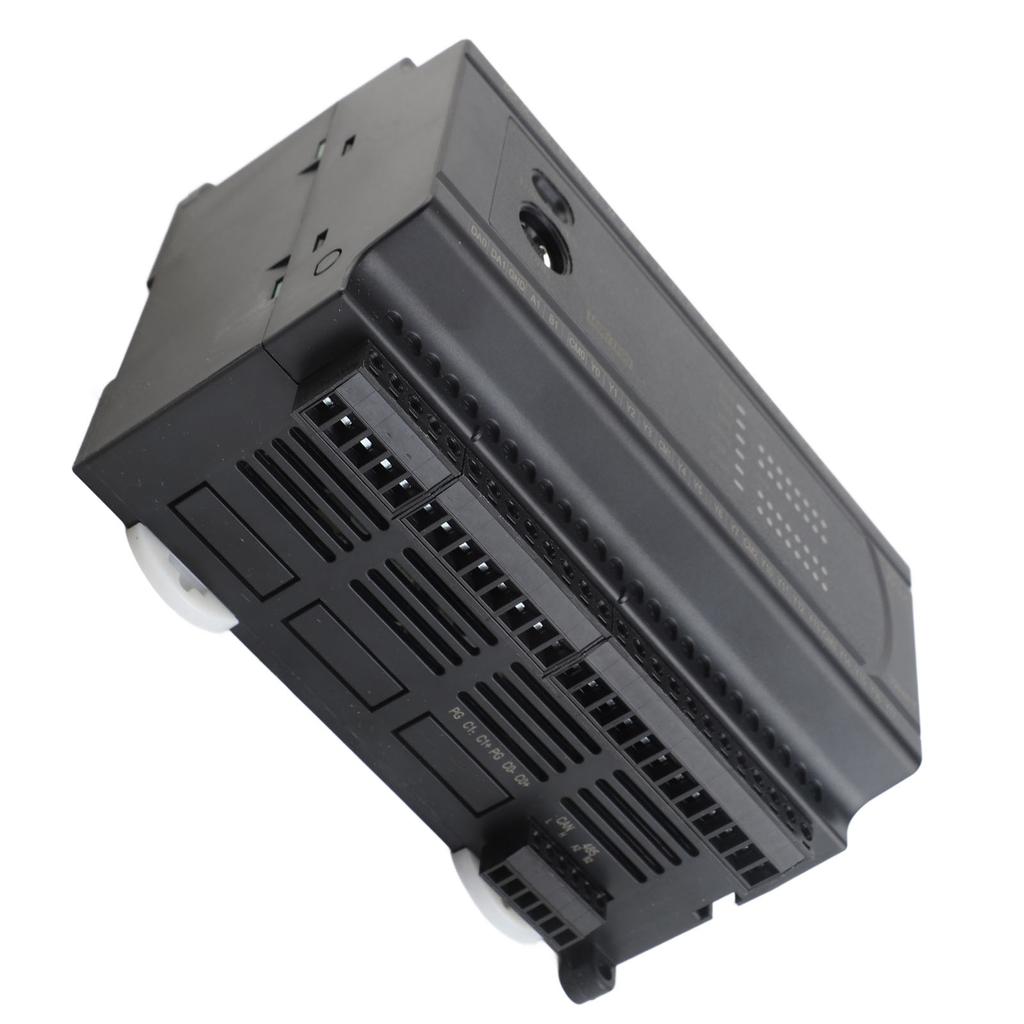

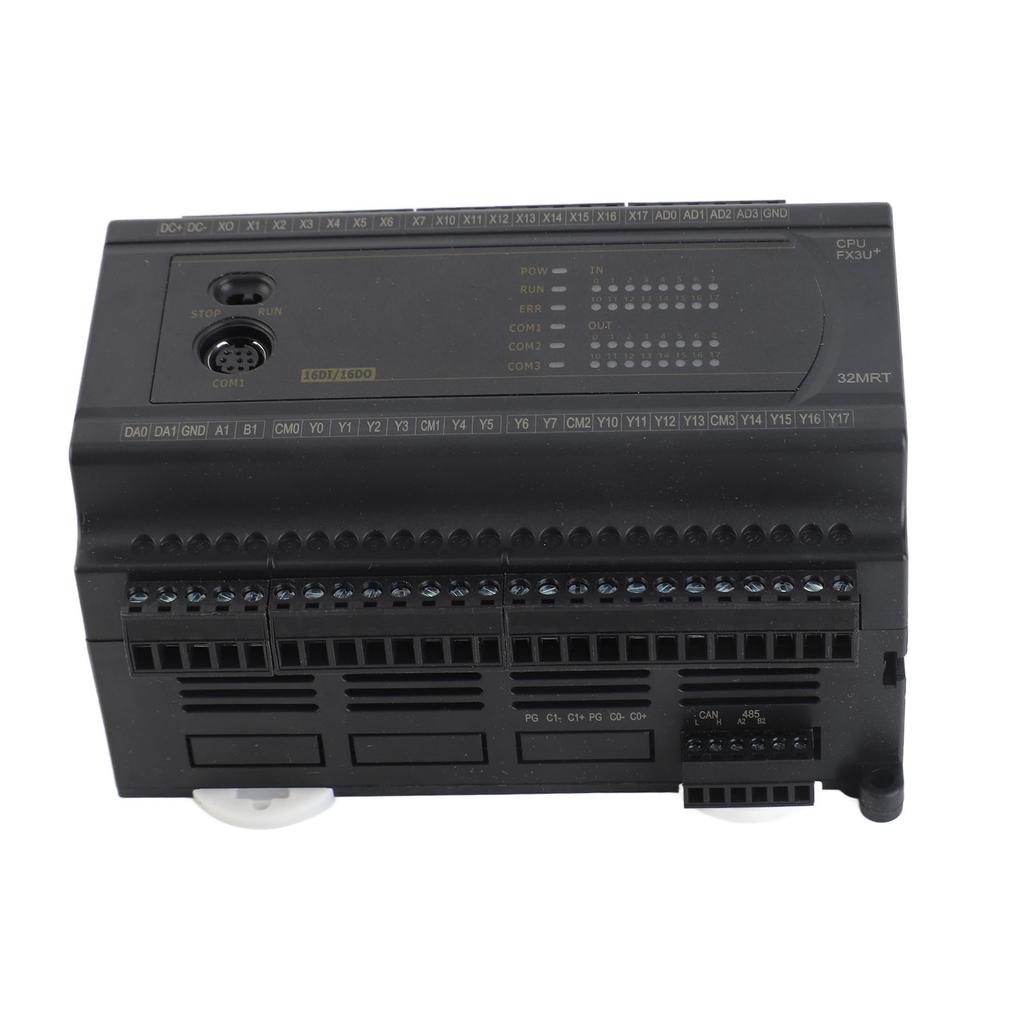

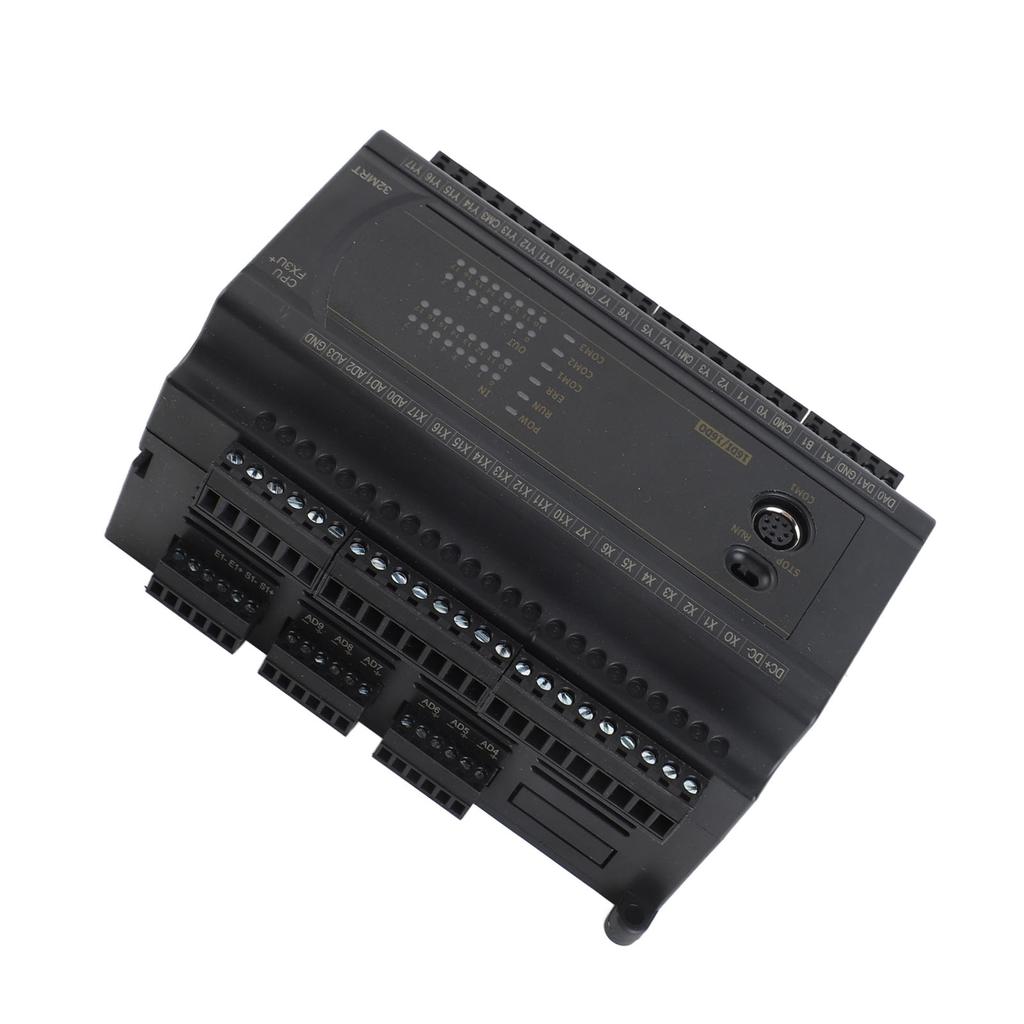

Item Type: PLC Industrial Control Board
Material: ABS
Size: Approx. 145x110x78mm 5.71x4.33x3.07in
Download Speed: 9.6115.2Kb
Memory Capacity: 32000 steps
Input Points: 16
Output Points: 16
Output Type: Transistor x 8, Relay x 8
Output Current: Transistor 0.5A, Relay 3A
Load: 24V 220V
High Speed Count: 2100K optional 4100K
Pulse Output: 6200K, 2100K
Analog Input: Default 4AD 010V, can be changed to 420mA
Analog Output: 2DA 010V
485: 2 way
232: 1 way
CAN: 1 way
Weighing: 1 way
Clock: Yes
Power Supply: AC220V.
Package List:
1 x PLC Industrial Control BoardDownload and Communication: Supports 1 RS232 and 2 RS485 communication ports, 4 NTC, clock, CAN, weighing, can communicate with programming software simultaneously. The download speed is compatible with 9.6 to 11.52Kbps.
Compatible Software: Use for GX Developer or for GX Works2 for programming, downloading, debugging, and monitoring (monitoring writing is not supported).
4 Communication Ports: Three communication ports can simultaneously communicate with the touch screen, protocol selection FX3U, communication parameters are 19200, 7, E, 1; One CAN communication can support up to 320 channels without occupying 485 and 23
Analog Input Output: Default 4AD 0 to 10V analog input, can be changed to 4 to 20mA, 2DA 0 to 10V analog output.
High Speed Input Output: Input defaults to 6 way, 100K for X0, 10K for X1 to X5 (X0 and X1 can be used as dual phase 100K); Output 200kHz for Y0 to Y5, and 100kHz for Y6 to 7.
