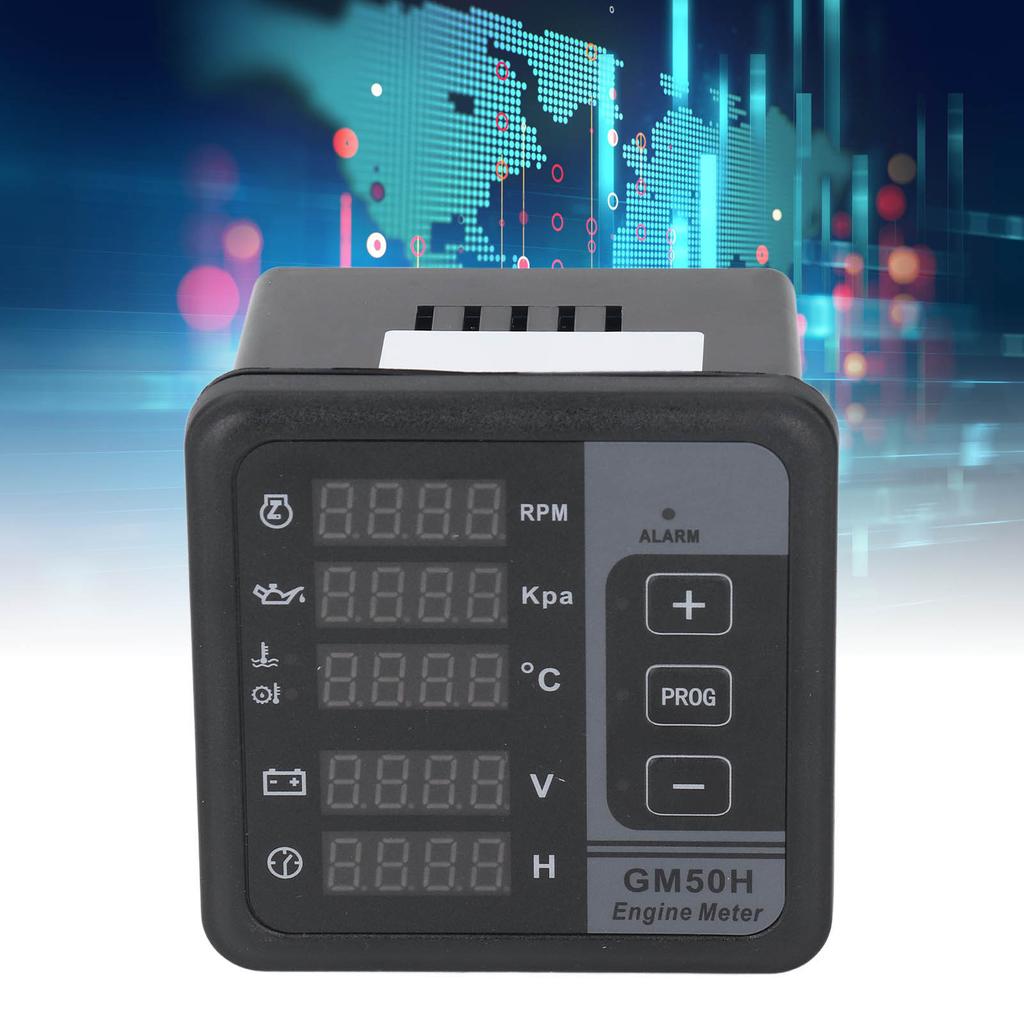

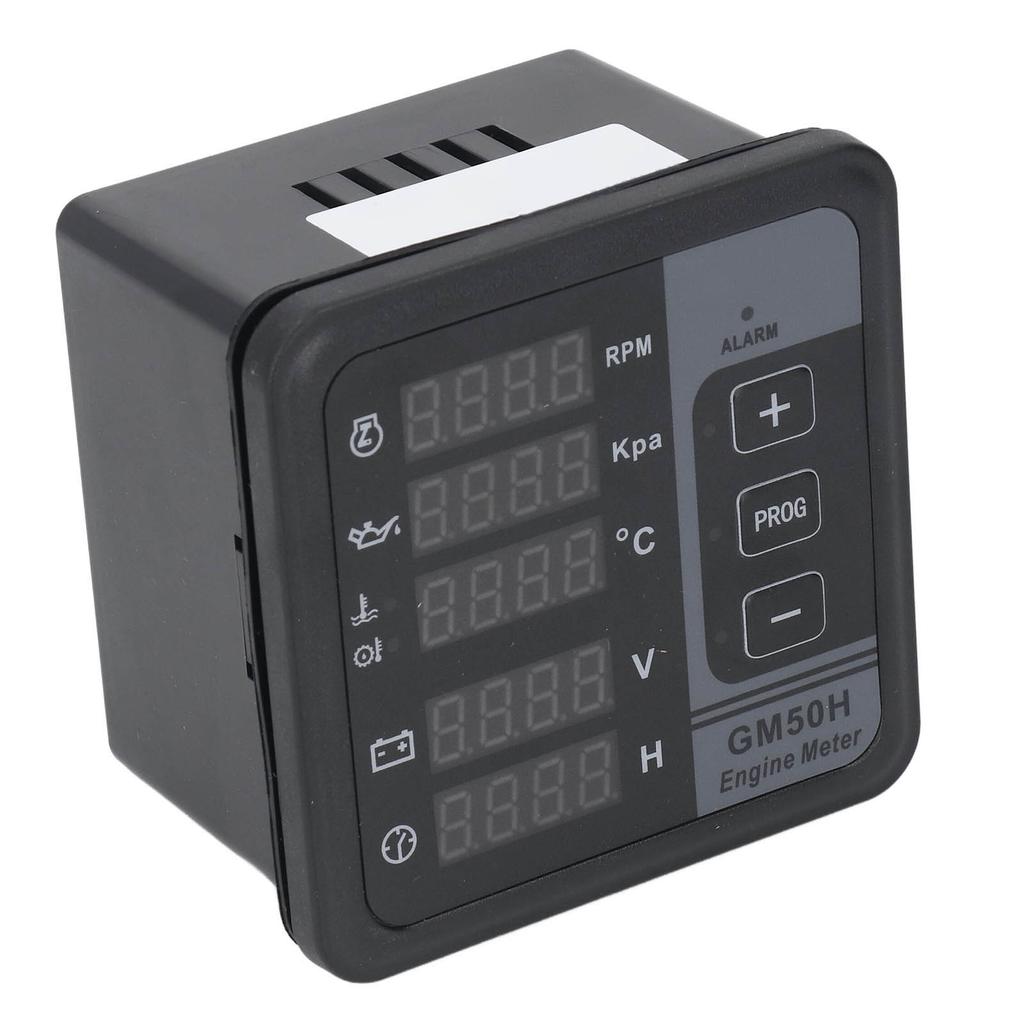

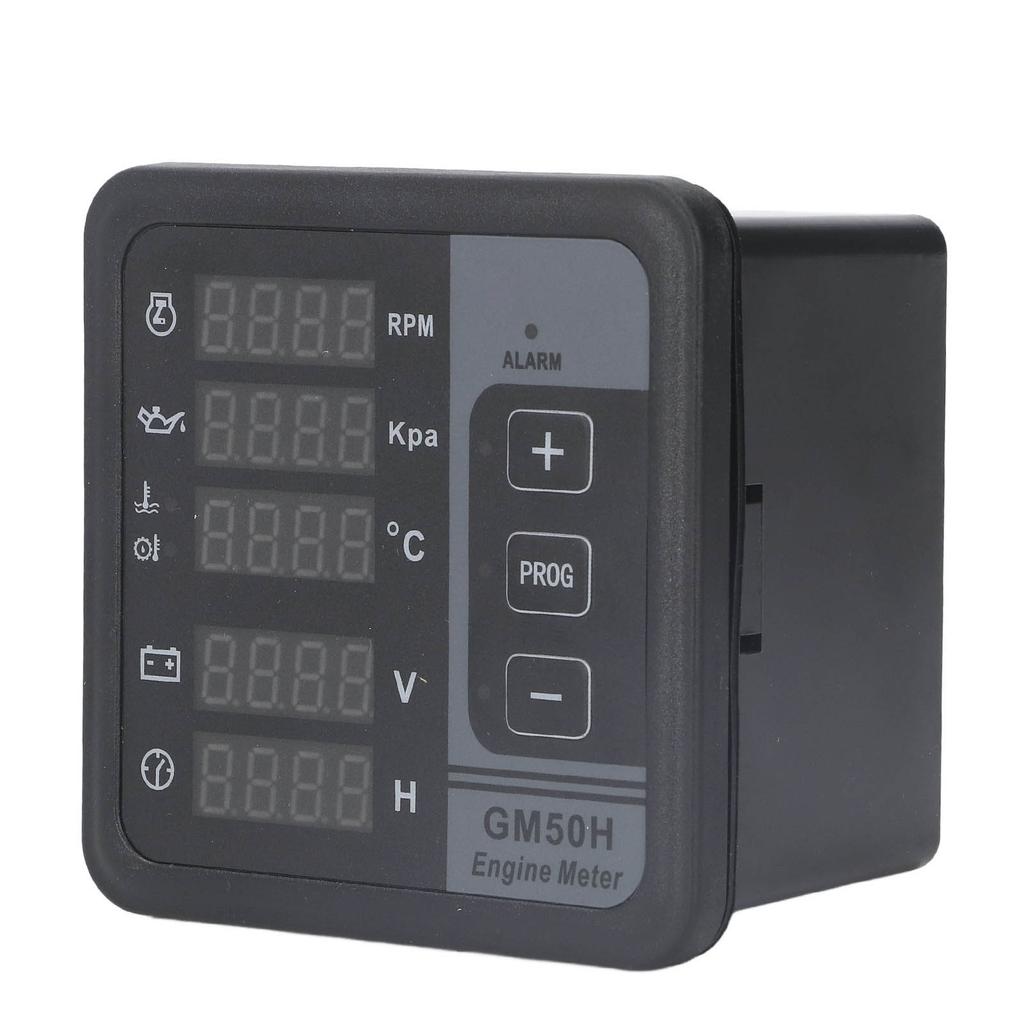

Diesel Generator Set Controller Digital Genset Engine Meter with Mounting Parts DC8‑36V GM50H

Feature: 1. MULTIPLE USAGES: Measure and display engine speed, oil pressure, water temperature, oil temperature, battery voltage and cumulative time. 2. GOOD PROTECTION: With low fuel consumption high engine temperature auxiliary, shutdown overspeed protection, charging fault warning. 3. STANDARD INTERFACE: RS485 interface is added on the basis of GM50H to support communication protocol and ensure good compatibility. 4. EASY TO INSTALL: Equipped with terminal blocks and fixing screws, the generator engine meter is easy to install, convenient and practical. 5. DIGITAL DISPLAY: The generator controller is a digital display design, with wide measuring range, which is suitable for more applications. Specification: Item Type: Generator Set Controller Model: GM50H Power Supply: DC8-36V Power Consumption: 1.5W maximum Sensor Input Resistance: 0-1000 ohms Speed Input Signal Frequency Range: 50Hz-10kHz Speed Input Signal Amplitude Range: AC3-65V Input Power Generation Frequency: 45-70Hz Input Generation Voltage: AC50-280V Package List: 1 x Engine Meter 2 x Terminal Blocks 2 x Fixing Screws 1 x User Manual
