[Low Noise and No Insertion Loss] With an optimal source impedance, the SSB noise figure is 10.3 dB at 70 MHz. Unlike passive mixers, the AD831 has no insertion loss, requires no external duplexer, and does not need passive termination.
[Wide Application Range] Suitable for RF to IF down conversion in HF and VHF receivers, second mixer in DMR base stations, DC baseband conversion, quadrature modulation and demodulation, and Doppler shift detection in imaging applications.
[Low DC Offset for DC Coupled Use] The amplifier features low DC offset characteristics, making it suitable for DC coupled applications such as DC baseband conversion and quadrature amplitude demodulation.
[High Linearity and Low LO Drive] Provides +24 dBm third order intermodulation intercept point with only minus 10 dBm LO drive, eliminating the need for a strong LO driver and extra isolation measures. Compared with passive mixers, this design improves system performance and reduces overall cost.
[Wide Bandwidth and Flexible Interface] RF and LO inputs operate up to 500 MHz. The IF output is a single ended voltage output with 250 MHz output bandwidth. A single resistor connected between the OUT and FB pins sets the gain.

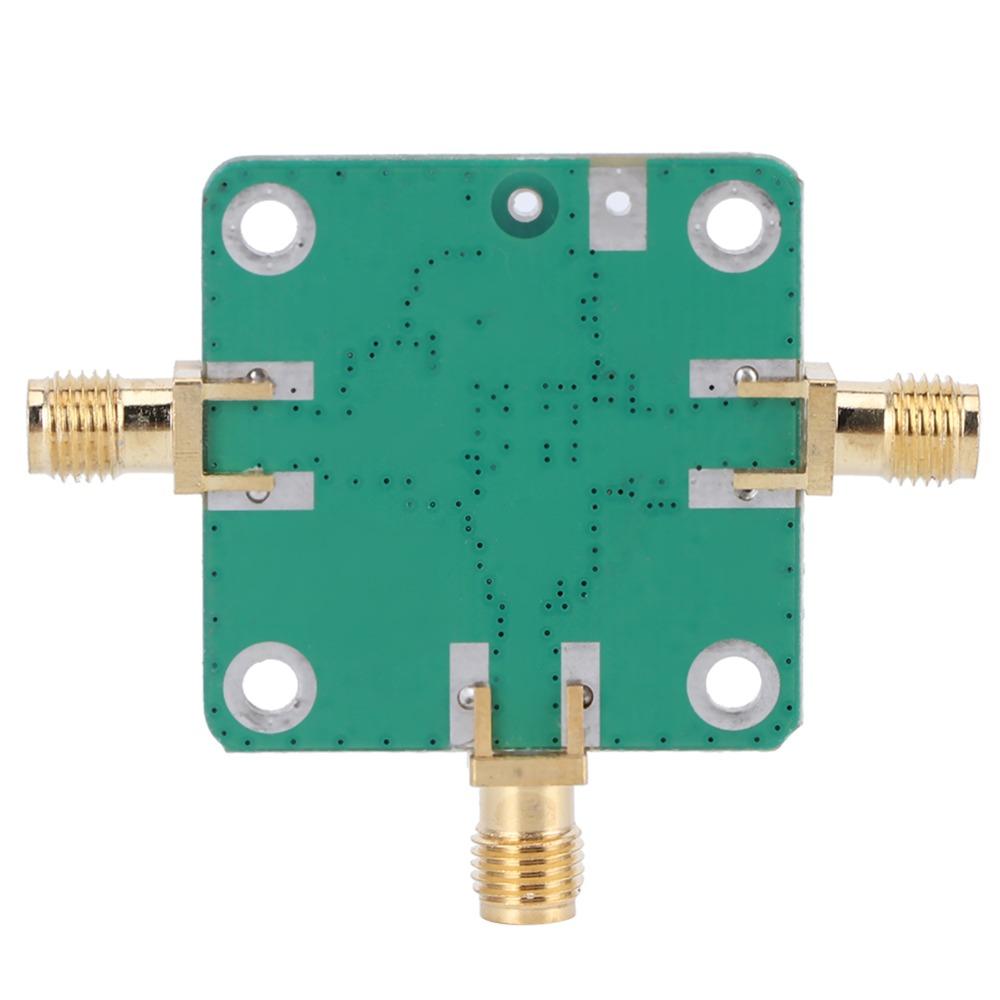

Item Type: RF Mixer Module
RF Input: 1-500mhz
RF input + 10dBm (1dB compression point)
Lo Input: 1-500mhz
Lo Input: - 10dBm
If Output: 1-200mhz
Power Supply Voltage: 9 -- 11V single ended power supply
Color: Multicolor
Material:PCB
Size: Approx. 52 x 42 x 6.6mm(2.05 x 1.65 x 0.26in)
Package List:
1 x RF Mixer Module
