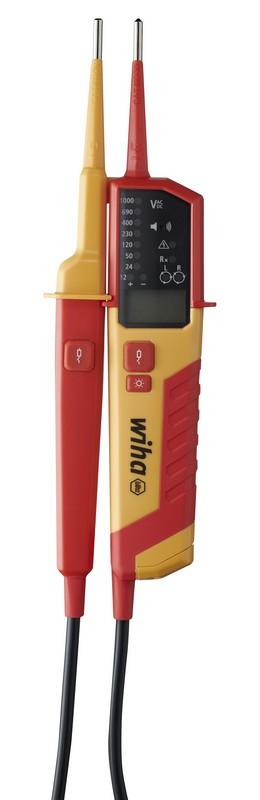

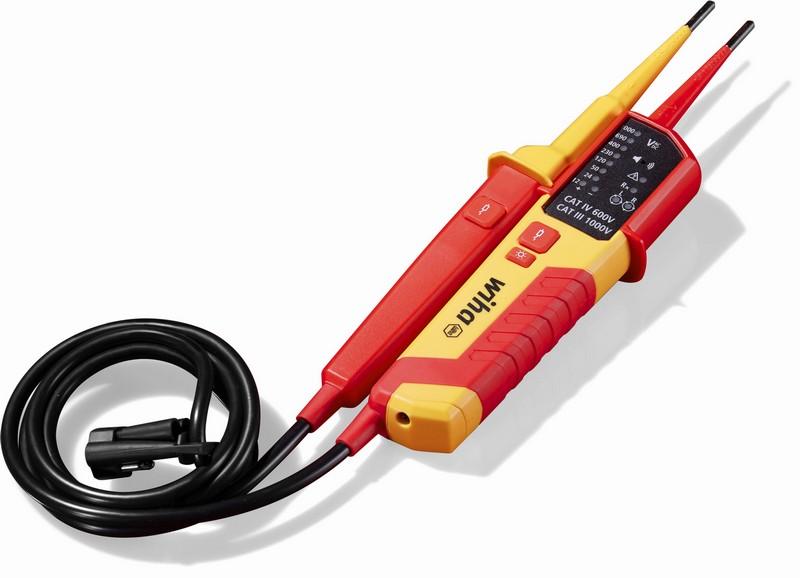

Voltage And Continuity Tester 0.5-1000V Ac, Cat Iv - Wh 45217

SPECIFICATION: Voltage and continuity tester 0.5 – 1000 V AC, CAT IV Catalog number45217 Battery type (IEC marking)2x AAA batteries Voltage V AC min. – max.0.5 - 1000 Voltage V DC min. – max.0.5 - 1500 Soiling degree2 Contactless voltage controlYes ATEX certificateNo Suitable for photovoltaicsYes Suitable for electromobilityNo Built-in flashlightYes FI controlYes LCD LED display IP protection classIP64 Rotating field indicationLED L, R Continuity testLED and acoustic signal Operating temperature min - max (°C) -15 - 50 Storage temperature min (°C) -20 °C Altitude above sea level 2000 m Rotating field test min - max (V AC) 100 - 700 Rotating field test 170 - 7000 V phase to phase AC 40-70 Hz Continuity test Measuring range 0 - 500 kΩ +50% LED indication ELV > 50 V AC, > 120 V DC LCD range0.5 V - 1.000 V AC, 0.5 V - 1.500 V DC LCD resolution0.1 V ( < 10 V) und 1 V (> 10V) LCD Accuracy+/- 3%, +/- 3 digits ( < 10 V) i +/- 3%, +/- 5 cyfr (> 10V) LCDOL overflow indication Operating time (s) < 0,5 s LED i < 1 s LCD Emergency current (mA)Is < 3,5 mA (przy 1000 V) Measurement mode30 s on (operating time), 240 s off (recovery time) Battery consumption (mA)80 mA Humidity RH max (%)85 % Acoustic signalYes Total length (??)282 Allows you to perform resistance and frequency measurements. Thanks to the large, digital LCD display with backlight and LED display, the measurement results can be read immediately. Additionally, during continuity testing, an audible signal indicates current flow. Furthermore, sockets can be conveniently tested with one hand thanks to the integrated spacer. The Wiha voltage tester's integrated flashlight function also ensures optimal visibility, even in low-light conditions. Simultaneously pressing the buttons on both test probe holders allows you to test the residual current circuit breaker by connecting a load. Compliant with measurement categories CAT III up to 1000 V and CAT IV up to 600 V, the Wiha voltage and continuity tester ensures maximum safety when working on electrical installations in buildings, as well as directly on power sources for low-voltage installations. **
