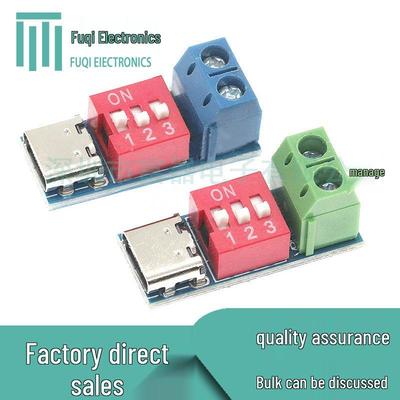

PD Fast Charging Test Board 5-20V Adjustable PD Trigger Board Module USB Type-C 100W Voltage Connetor Power Supply Accessories

Good luck with your favorite purchases

PD Fast Charging Test Board 5-20V Adjustable Charging Test Module High Speed USB Type-C Voltage Connetor Power Supply Accesories Feature: 1. Versatile PD Tester:Supports various fast charging protocols such as PD3.0/2.0 and BC1.2, providing a maximum power output of 100W. It includes like over-temperature and over-voltage protection. 2. Adjustable Voltage Range:Equipped with a convenient DIP switch, allowing voltage adjustment from 5V to 20V. This enables flexibility in testing different devices and their power delivery capabilities. 3. Wide Compatibility:Compatible with PD3.0/2.0 and BC1.2 fast charging protocols, ensuring compatibility with a wide range of devices. Users can confidently test and verify the charging performance of various gadgets. 4. USB Type-C PD Support:Specifically designed with USB Type-C PD support, enabling seamless connection and automatic switching for both forward and reverse insertion. This ensures hassle-free testing for devices with various input voltages between 4V and 22V. 5. Reliable Power Delivery:With its support for high-power outputs and protective like over-temperature and over-voltage protection, this PD tester provides a reliable and safe means of evaluating and analyzing the power delivery capabilities of different devices. Specification: Origin: Mainland China Input voltage: 4V~22V Output voltage: up to 20V Interface: Supports USB Type-C PD Power: up to 100W Product size: About 27 * 10 * 13mm/1.06 * 0.39 * 0.51inch Instructions for use: CFG1 corresponds to dial switch 1 CFG2 corresponds to dial switch 2 CFG3 corresponds to dial switch 3 Dial to the bottom as 1, and dial to the top as 0. Flipping the switch can request an appropriate voltage based on the charger protocol

Note: Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! Please allow 1-2cm measuring deviation due to manual measurement. 1 x PD Fast Charging Test Board
