Description:
All brand new and high quality

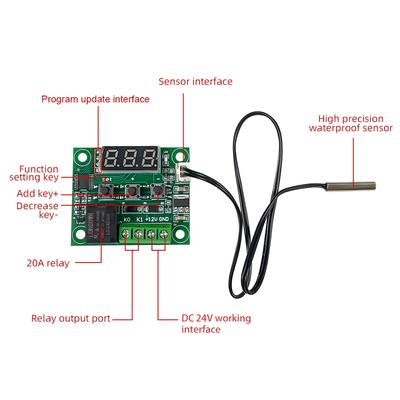

practical good quality XH-W1209 Digital Display Thermostat High Precision Temperature Controller.
Specification:
1 cm = 0.39 in
1.color:red
2.Material: electric element
3.Size: 48.5 * 40mm
Temperature range :-50-110 degree
Temperature control mode: ON / OFF
Resolution:When temperature is 0.1degree, the resolution is -9.9 - 99.9, other
Temperature segment is 1degree
Control accuracy: 0.1 degree
Hysteresis accuracy: 0.1degree
Refresh rate: 0.5S
High temperature protection: 0-110degree
Supply voltage: DC 12V
Static current: Less than or equal to 35MA, attract current Less than or equal to 65MA
Output voltage: DC 12V
Output power: 20A relay
Measurement input: NTC (10K 0.5%) Waterproof Sensor
Environmental requirements: -10 - 60 degree ,Humidity 20% -85%
How to use:
Connect the power supply and the load, you can supply to the controller,
Is displayed as a measured temperature,
Press the SET button, the display flashes the temperature,
Press - to set the desired temperature,
After setting press SET to confirm return,
The controller automatically performs the relay by setting off!
Lights, LED status descriptions:
Indicator: Off The relay is switched off, Always indicate the relay is closed.
LED: Shows LL is the sensor open, showing ?HH is out of range, the thermostat will be forced to close the relay, the display --- as high temperature protection.
Package Includes:
1 Pc
Note:
1.Due to manual measurement, please allow an error of 1-2cm. Please make sure you don't mind before bidding.
2.Due to the differences between different monitors, the picture may not reflect the actual color of the project. Thank you!
