Material Type : ABS
Item Weight : 0.045kgkg
Item Size : 75 * 50 MM
Model Name : Bluetooth Mp3 decoder module FM Radio Receiver Kit For Car stereo
Special Features : Handsfree 50W Bluetooth MP3 Decorder Board
Origin : Mainland China
Item Type : BLUETOOTH CAR KIT
Certification : CE,none
support 1 : Bluetooth Handsfree with MIC
support 2 : USB Disk Playing
support 3 : 3.5mm AUX LINE IN Playing
support 4 : Up to 32G TF card Music Playing
support 5 : FM Radio Decoder Board Wireless Audio Receiver
support 6 : Colorful Digital Display
support 7 : Bluetooth 5.0 Handsfree Kit
support 8 : Audio Recording
support 9 : DIY Car Audio modification Kit
support 10 : Wireless MP3 Decoder Board Stereo Speaker Updating

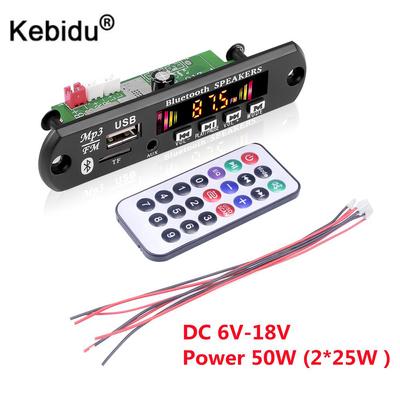

2*25W Stereo Bluetooth 5.0 MP3 Player Decoder Board 12V 50W Amplifier Car FM Radio Module Handsfree Support TF USB AUX Playing
Key Description:
USB: Connect U disk (maximum support 32GB)
LED: Digital color screen display, red infrared receiver module
TF: Connect TF memory card (maximum support 32GB)
AUX: Audio input interface
VOL-: Short press is to select the previous song; long press is to decrease the volume
PLAY/PAUSE: Short press is to switch between pause and play; long press is to automatically search for radio FM
VOL: Short press is to select the next song; long press is to increase the volume
MODE: USB/TF/FM/AUX/BLUETOOTH sound switch
Description:
1. Support folder playback
2. Support call
3. Support recording. Recording only supports operation in TF mode or USB mode.
(Long press the MODE button to start recording, long press the MODE button again to cancel the recording and play the recording file; when recording, it is more necessary to connect a storage device, such as a U disk or TF card;)
4. Support power off memory (support the last mode and volume memory. (The last setting before power off will be played after power on)
5. Color screen display
6. The power supply voltage supports between DC6v-18v, and the current is between 1-3A.
7. Can be directly connected to speakers, with power amplifier and decoding functions.
8. Support song format MP3 /WMA / WAV / APE / FLAC
9. Main functions MP3/USB/TF/LINE IN/FM/BLUETOOTHemote control/
10. The Bluetooth version is 5.0
11. Chip model Zhongke Lanxun 5536A
12. Power 50W, true stereo dual channel. (2*25W)
13.Radio FM frequency: 87.5-107.5 MHZ
14.Support function introduction: support MP3 / USB / TF / LINE IN / FM / BLUETOOTH / remote control connection / DC 5V or 12V (optional)
15.About the structure: Panel size: 75 * 50 MM, the panel is surrounded by screw holes, the depth of the panel is 18MM
Description of Recording Function:
1. Long press the MODE button to start recording, and long press the MODE button again to cancel the recording function;
2. Press the MODE button again to play the recording file;
3. When recording, you need to connect a storage device, such as U disk or TF card;
