Quickly and easily install on an engine, bench or turret lathe for a wide range of .
interchangeable with Aloris, Dorian, Phase II, and most other manufacturer components.
All working parts are hardened and ground.
The tool holder is the main accessory of small lathe. Selects the corresponding tool holder according to the needs of the workpiece. It has the characteristics of quick tool change, high positioning accuracy and strong rigidity.
Features:
Quickly and easily install on an engine, bench or turret lathe for a wide range of .
interchangeable with Aloris, Dorian, Phase II, and most other manufacturer components.
All working parts are hardened and ground.
Can handle all kinds of angle workpieces.
A tool change takes only a few seconds.
Can process car outer , car end face, grooving, cutting, knurling, reaming, boring and so on.
Specification:
Material: steel
Color: black
Type: 250-222, 250-201, 250-202, 250-204, 250-207, 250-210, 6pcs set (optional)

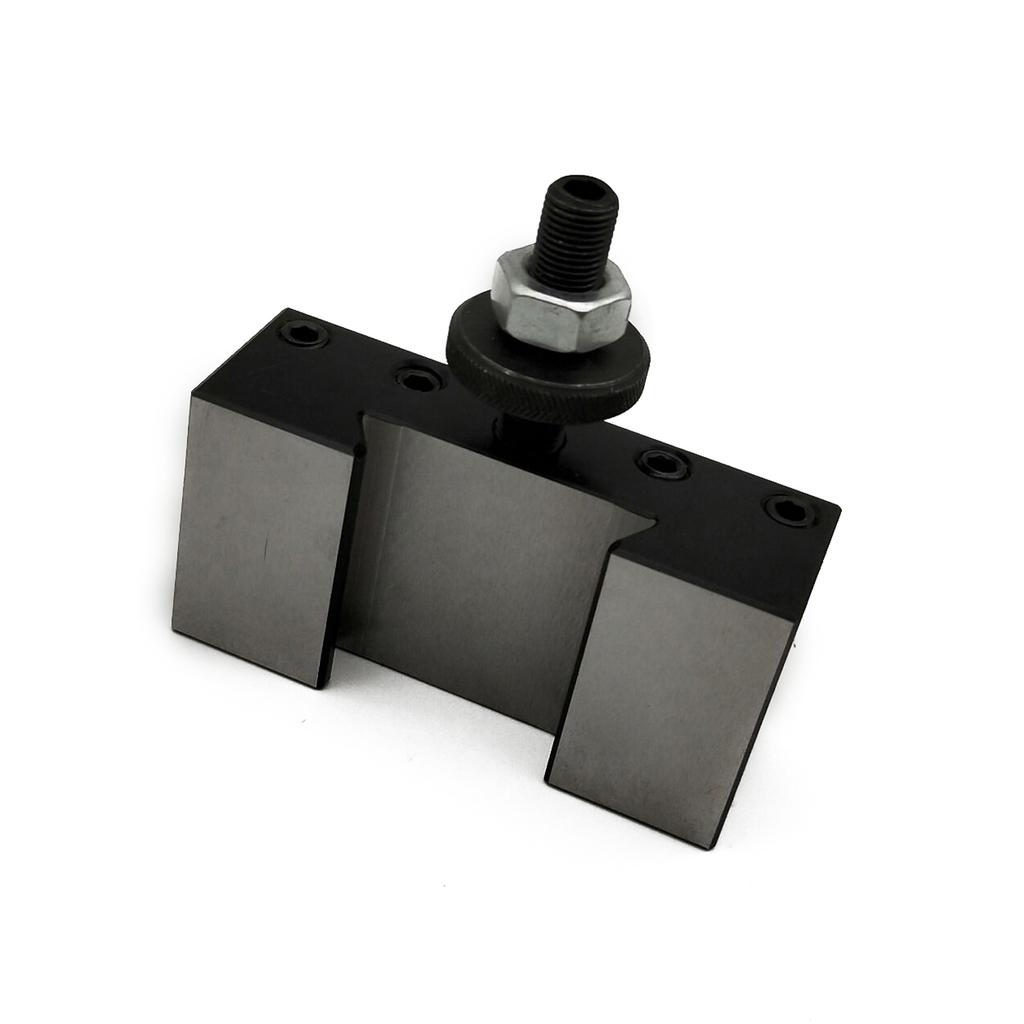

250-222: - tool post (3 L * 3 W * 4-5Celsius8 H)
250-201: turning & facing holder with 1Celsius4-5Celsius8 tool capacity
250-202: boring, turning & facing tool holder with 1Celsius4-5Celsius8 tool capacity
250-204: boring bar tool holder with 3Celsius4 & 1 capacity
250-207: parting blade tool holder with 11Celsius16 blade height
250-210: knurling, facing & turning tool holder 1Celsius4-5Celsius8
Package size:
250-222Celsius250-201Celsius250-202Celsius250-204Celsius250-207Celsius250-210: 120 * 115 * 80mm Celsius 4.7 * 4.5 * 3.1in
6pcs set: 145 * 80 * 55mm Celsius 5.7 * 3.1 * 2.2in
Package weight:
250-222: 3900g Celsius 8.6lb
250-201: 710g Celsius 1.6lb
250-202: 700g Celsius 1.5lb
250-204: 1540g Celsius 3.4lb
250-207: 940g Celsius 2.1lb
250-210: 880g Celsius 1.9lb
6pcs set: 8700g Celsius 19.2lb
Packing List: (optional)
1 * Tool Post
or
1 * Tool Holder
or
1 * 6pcs Set
